Diversity, duplication, and genomic organization of homeobox genes in Lepidoptera

Classification of all Lepidoptera homeobox genes

We identified all homeobox gene loci in the genomes of 123 lepidopteran species, including 87 moths and 36 butterfly species (Supplemental Table S1; http://doi.org/10.5281/zenodo.7274111). To place our analyses in an evolutionary context, we also constructed a phylogenetic tree of the species analyzed using 2262 BUSCO genes (see Methods; Fig. 1A; Supplemental Fig. S1). Homeobox sequences were then classified using the characteristic homeodomain and a combination of reciprocal best BLAST and molecular phylogenetic analysis: This “total” collection of homeobox loci could include functional genes, partial genes, and pseudogenes.

Figure 1.

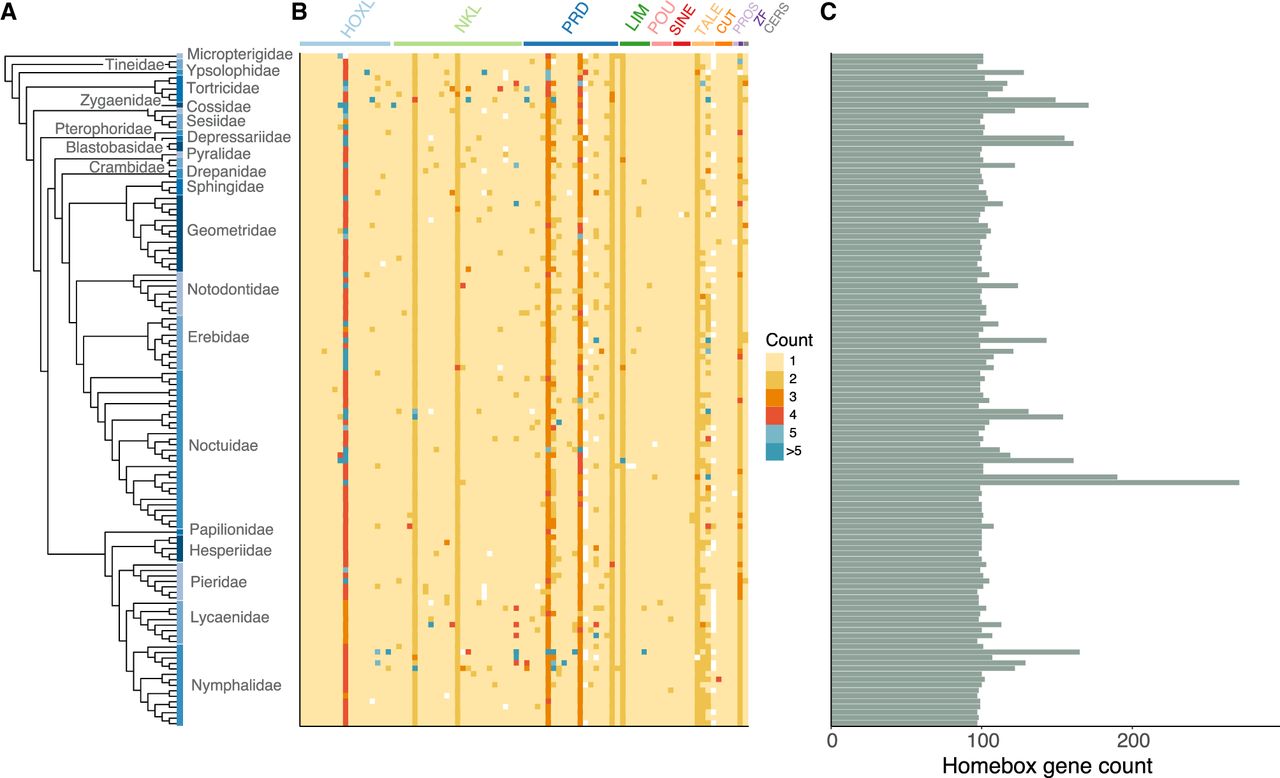

Numbers of homeobox sequences across Lepidoptera. (A) Species tree of Lepidoptera analyzed constructed using BUSCO gene set. Colored boxes spanning tips of the tree represent distinct Lepidoptera families with the family names shown. Species in the tree are listed in the same order as in Supplemental Figure S1. (B) Heatmap showing numbers of homeobox loci in each gene class and subclass (from left to right: lab, Abd-B, abd-A, Ubx, Antp, ftz, Scr, Dfd, zen, Shx, pb, ind, cad, exex, eve, unpg, btn, Tlx, Msx, NK4, NK3, Lbx, NK1, Hmx, Emx, Hhex, NK7, NK6, Nedx, Dlx, En, NK2.1, Msxlx, Hlx, NK2.2, Barhl, Bari, Bsx, Dbx, Abox, Noto, ro, Uncx, Gsc, Pitx, Otp, Rx, Hbn, Repo, Prrx, Shox, Arx, Pax4/6, Phox, Prop, Vsx, CG11294, Pax3/7, Drgx, Otx, Lhx6/8, Lmx, Lhx2/9, Lhx3/4, Lhx1/5, Isl, Pou2, Pou3, Pou4, Pou6, Six3/6, Six1/2, Six4/5, Meis, Irx, Mkx, Pbx, Tgif, Onecut, Cux, Cmp, Prox, Zfhx, Cers). (C) Total counts of homeobox loci in each genome.

Open in new tabDownload PowerPointLink to figure

We find that the catalog of homeobox loci is relatively stable across Lepidoptera (Fig. 1B,C), with most species possessing around 100 homeobox sequences. However, certain lineages and species showed marked increases in homeobox counts, resulting mainly from duplications within individual homeobox gene classes. The main contributors to these increases are large expansions within the Hox gene cluster in some clades or smaller-scale duplications of PRD class genes. Homeobox gene loss has also occurred. For example, the HHEX (Hhex) gene of the ANTP class is absent from the genomes of all three Pieris species sequenced, consistent with a loss in this clade (Fig. 1B). We deduce that the ShxD gene was lost in the genus Melitaea, as it is absent in both Melitaea cinxia (Glanville fritillary butterfly), consistent with an earlier report (Ferguson et al. 2014), and Melitaea athalia (heath fritillary butterfly). Similarly, we do not find the ShxD gene in any of the eight Lycaenidae species in our data set (Lycaena phlaeas, Celastrina argiolus, Glaucopsyche alexis, Plebejus argus, Cyaniris semiargus, Aricia agestis, Lysandra bellargus, and Lysandra coridon), implying that this gene was also lost early in the evolution of the family Lycaenidae. Some homeobox genes, such as Mkx (orthologous to Dmel\CG11617) of the TALE class, were lost many times independently across Lepidoptera (Fig. 1B).

Using a representative set of seven species, we examined expression levels for each homeobox gene using female whole-body RNA-seq (Supplemental Fig. S2). We find clear evidence for the expression of Hox genes and Shx genes, with particularly strong expression of ShxC; consistent expression of homeobox genes in the SINE, TALE, CUT, PROS, ZF and CERS classes; and variable expression of PRD class and NK homeobox genes.

Rearrangement of the Hox gene cluster

Within insects, the Hox gene cluster generally comprises 10 homeobox genes arranged in a specific order reflecting their evolutionary origin by tandem gene duplication: lab, pb, zen, Dfd, Scr, Antp, ftz, Ubx, abd-A, and Abd-B. The cluster may be split, as in many Drosophila species (Duboule 2007; Negre and Ruiz 2007), individual genes may be inverted, and the zen gene may be duplicated (e.g., zen, zen2, and bcd in Drosophila melanogaster), but radical gene order changes are rare, documented only within individual species or close relatives (Negre et al. 2005). A difficulty in studying gene order is that intergenic distances may be large, and many genome assemblies do not provide long-range linkage information. Using chromosome-level gene assemblies (Supplemental Table S1), we have determined the structure of the Hox gene cluster in 123 Lepidoptera genomes, providing the first comprehensive description of the cluster evolution across this order.

We found all Hox genes on a single scaffold for 115/123 genomes (Supplemental Fig. S3). In all Lepidoptera we analyzed, we found the canonical lab, pb, Dfd, Scr, Antp, Ubx, abd-A, and Abd-B homeotic genes, plus the divergent Hox-derived genes zen and ftz, along with gene order, orientation, and intergenic distances. In most Lepidoptera, excepting some “basal” lineages, we also found four distinct Shx genes (ShxA to ShxD) between zen and pb (Figs. 1, 2; Supplemental Fig. S3), as previously noted for a smaller sample of species (Ferguson et al. 2014). The structure of the Hox cluster for Autographa gamma (silver Y moth) (Boyes et al. 2022c) shown in Figure 2B reflects the general structure found in most lepidopteran species.

Figure 2.

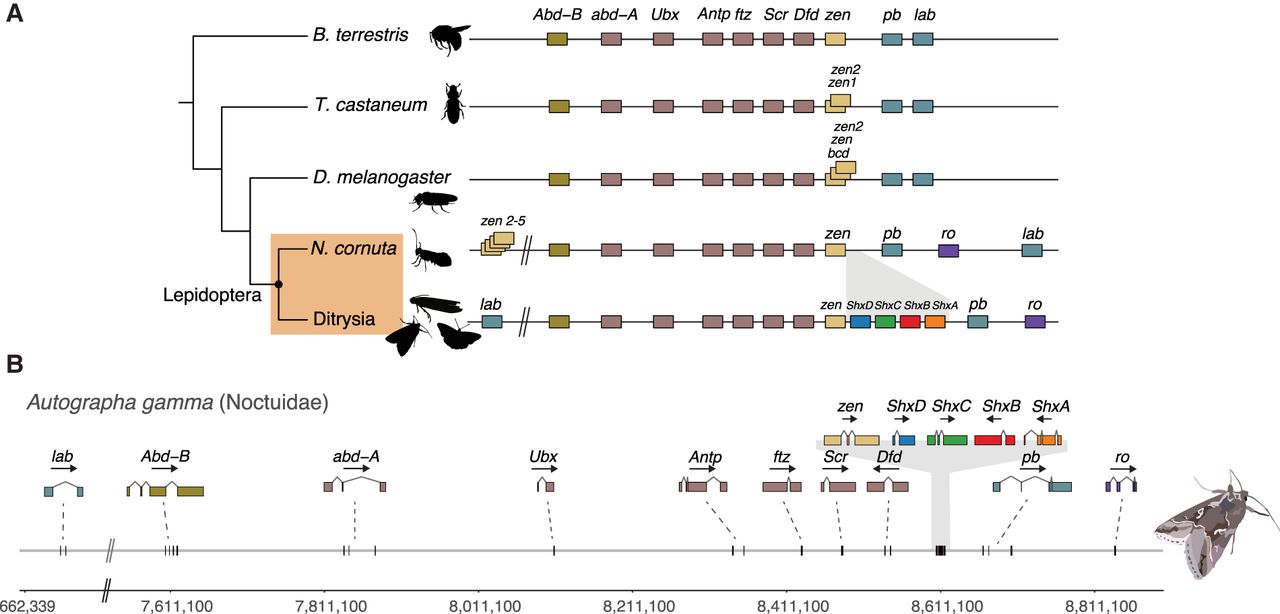

Hox gene cluster evolution across Insecta. (A) Comparison of the general structure of the Hox gene cluster between representative species for Hymenoptera (Bombus terrestris), Coleoptera (Tribolium castaneum), Diptera (Drosophila melanogaster), and Lepidoptera. Lepidoptera are shaded in an orange box and split between non-Ditrysia species (Neomicropteryx cornuta) and Ditrysia (represented by 122 species in our data set). Lepidoptera-specific Shx genes are colored orange (ShxA), red (ShxB), green (ShxC), and blue (ShxD) in this figure and throughout the paper. (B) Genomic location of Hox genes in A. gamma with corresponding exon structures and genomic distances annotated below. Silhouette images of B. terrestris, T. castaneum, and D. melanogaster were taken from PhyloPic (phylopic.org).

Open in new tabDownload PowerPointLink to figure

When compared with other insect orders, two rearrangements are apparent. First, we consistently find a non-Hox homeobox gene, rough (ro), in close association with the gene cluster. Across almost all Lepidoptera species, the ro gene is adjacent to pb, in the genomic location where lab or its ortholog is found in most species (shown for A. gamma in Fig. 2). Second, the lab gene has been translocated to a distant genomic location beyond Abd-B. This dissociation of lab is consistent with a split between lab and other Hox genes previously reported in B. mori, although the position of lab was unresolved in this earlier work (Yasukochi et al. 2004; Chai et al. 2008). In A. gamma, the lab gene is ∼7 Mb from Abd-B, whereas the main part of the Hox cluster spans 1.22 Mb from Abd-B to ro. We find the Hox gene cluster (excluding lab) in Lepidoptera ranges from 1 Mb in Papilio machaon (swallowtail butterfly) to 6.8 Mb in Euproctis similis (yellow-tail moth). A further inversion of the ro gene occurred within the Pieris clade, resulting in relocation of ro to between lab and Abd-B (Supplemental Fig. S3).

An evolutionarily conserved topologically associating domain around the Hox cluster

To assess whether the rearrangements in gene order could be associated with changes in regulation of Hox genes, we used Hi-C data to annotate topologically associating domains (TADs) across the genome. These data can reveal the 3D organization of the chromatin and, at least in some cases, highlight regions of the genome under common regulatory constraints (Schoenfelder and Fraser 2019; Szabo et al. 2019). Given that the purpose of the Hi-C sequencing of these species was to assist in genome assembly (Lawniczak et al. 2022), the depth of Hi-C is lower than in some other studies (Liao et al. 2021), ranging from around 35 million to 52 million paired-end reads (Supplemental Table S2). Nonetheless, we found this sequencing depth sufficient for the analysis, revealing TADs in lepidopteran genomes, which were visualized at 5-kb resolution using HiCExplorer (Ramírez et al. 2018). To our knowledge, this is the first such analysis for Lepidoptera genomes and is one of the few assessments of chromatin accessibility around invertebrate Hox gene clusters (Acemel et al. 2017). In a sample of nine species representing diverse families across Lepidoptera (Fig. 3A), we observe strong evidence of an evolutionarily conserved, prominent TAD covering most of the Hox gene cluster from pb to Abd-B (Fig. 3A,B). This TAD was also observed in species with a large increase in copy number within the Hox cluster (see section “Independent tandem duplication of Shx genes” below) (Supplemental Fig. S4A). In all species analyzed, lab and ro are located outside the distinct TAD (Fig. 3A). Assessing the wider chromosomal organization in Pheosia gnoma (lesser swallow prominent), it is clear that there is a high degree of contact within the Hox-containing TAD relative to the rest of the chromosome (Fig. 3B). Although genome-wide conservation of TADs between species has been questioned (Eres and Gilad 2021), we argue that the strong and consistent signal for physical contacts across the Hox cluster in diverse moths and butterflies is evidence for a conserved TAD around a cluster of developmentally important genes. We make no assessment of possible conservation of other TADs in lepidopteran genomes. Outside the Hox gene cluster, the general structure of TADs across this chromosome appears similar to the pattern observed in Drosophila, with TADs representing condensed internal interactions and larger compartments showing long-range interactions between these domains (Fig. 3B,C; Sexton et al. 2012; Ulianov et al. 2016; Szabo et al. 2018; Liao et al. 2021).

Figure 3.

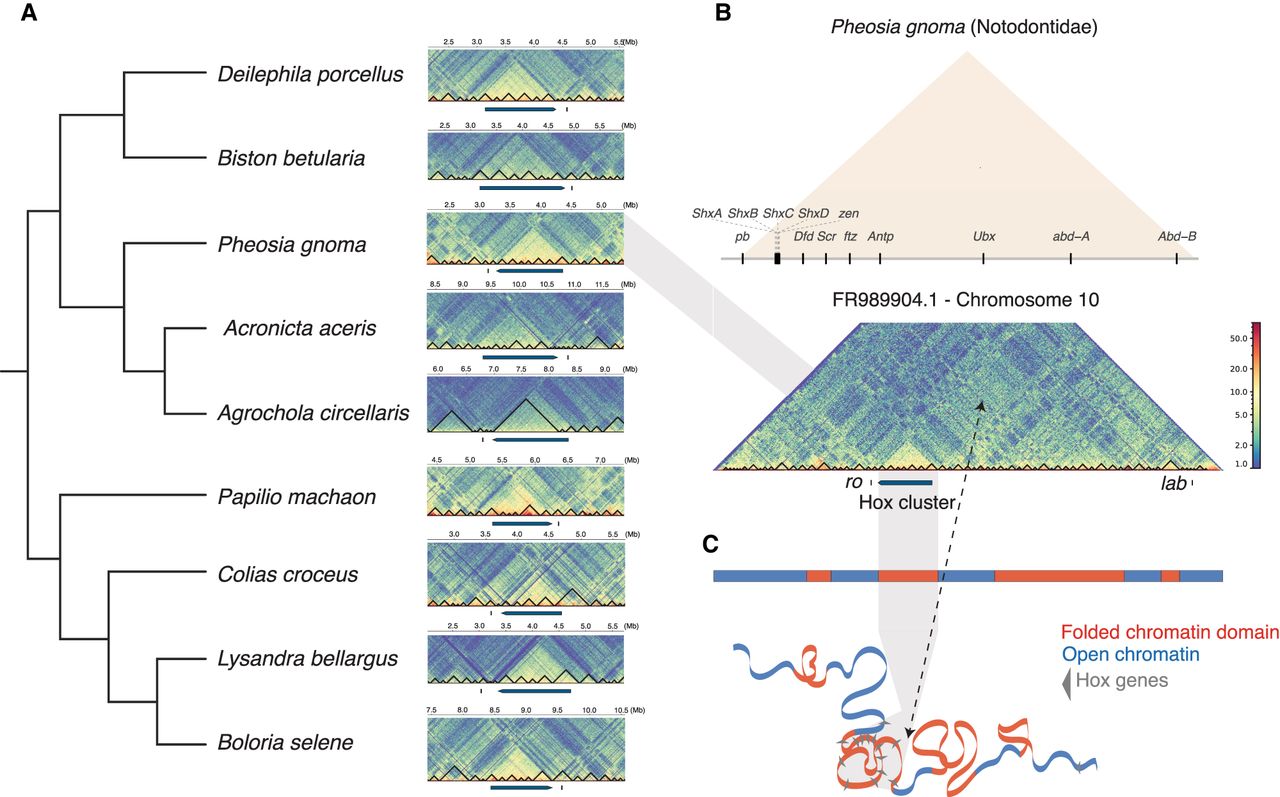

Evidence for a conserved topologically associated domain (TAD) spanning the Hox gene cluster across Lepidoptera. (A) Species tree of nine representative lepidopteran species on left; Hi-C matrix showing 1 Mb either side of the Hox gene cluster (excluding lab). The location of the Hox gene cluster from (Abd-B to pb) is annotated by a blue bar, along with its orientation. The position of ro is annotated with a short vertical black dash. The intensity of chromatin compaction is represented by a blue (low) to red (high) color gradient. Across the core Hox cluster (pb to Abd-B) in each species a TAD is represented by a region of strong contact, by the more-yellow-shaded regions. Black lines represent TADs or sub-TADs predicted by HiCExplorer. (B, top) The arrangement of the Hox gene cluster (excluding ro and lab) surrounded by a TAD (orange) in Pheosia gnoma (lesser swallow prominent). (Bottom) The Hi-C matrix of Chromosome 10 showing the location of the Hox cluster, represented by a blue bar, along with ro and lab, represented by short vertical black dashes. (C) Schematic showing tologically folded domains in Chromosome 10 (red) interspersed by chromosome regions with less consistent topology (blue) based on the above Hi-C matrix. Shaded gray region shows the location of the condensed TAD containing the Hox cluster.

Open in new tabDownload PowerPointLink to figure

Origin, duplication, and loss of Shx genes

As in most Lepidoptera, four distinct Shx genes were identified between zen and pb in the Hox gene cluster of A. gamma (Fig. 2; Supplemental Fig. S3). Phylogenetic analysis supports the derivation of Shx genes by tandem duplication and sequence divergence from zen (see Fig. 4A; Ferguson et al. 2014). We also find rapid sequence divergence within the homeodomain of these genes following duplication from zen, as previously described (Fig. 4A; Ferguson et al. 2014). Shx genes are found in representatives of the Erebidae, Nymphalidae, Sphingidae, Noctuidae, Lycaenidae, Pieridae, Papilionidae, Notodontidae, Drepanidae, Hesperiidae, Tortricidae, Geometridae, Sesiidae, Blastobasidae, Depressariidae, Crambidae, Pterophoridae, Pyralidae, Tineidae, Ypsolophidae, Cossidae, and Zygaenidae families, but we do not identify these genes in Micropterigidae (Fig. 2A; Supplemental Fig. S3). Instead, extra copies of zen (four in addition to the original zen) were found in a species from the family Micropterigidae (Neomicropteryx cornuta). These loci, which are located outside the Hox cluster beyond the location of Abd-B, group outside of the Shx genes in a molecular phylogenetic analysis: two with the zen clade and three closer to the lab clade (Fig. 4A). We suggest all are derived from zen. They display higher rates of substitution in the homeodomain compared with the other zen genes analyzed, which may underlie erroneous placement of some genes closer to lab.

Figure 4.

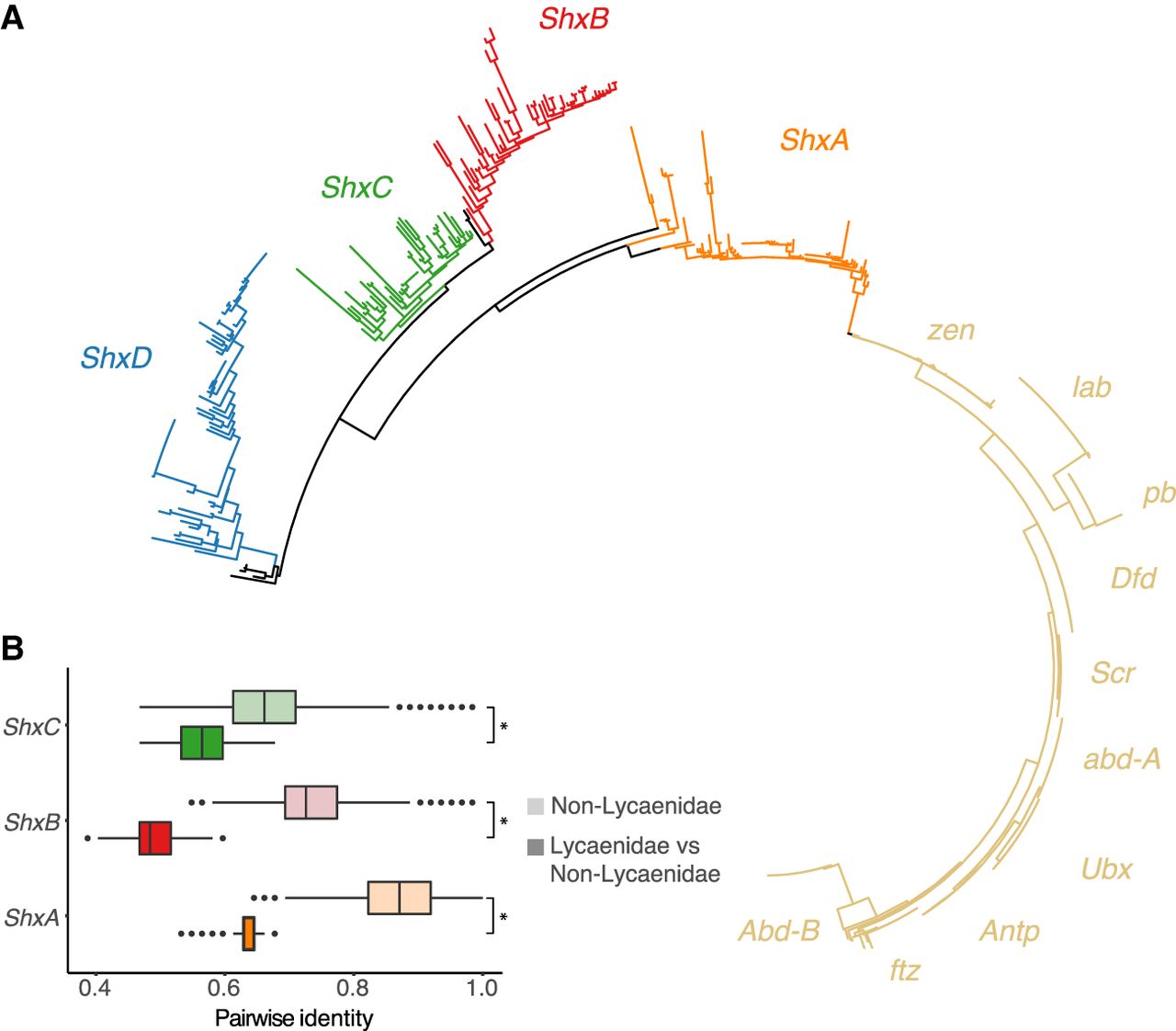

Sequence evolution of Hox genes across Lepidoptera. (A) Phylogenetic tree of Hox and Hox-derived homeodomains across 46 Lepidoptera species. Shx gene clades are colored orange, red, green, and blue; canonical Hox genes are colored yellow. The names of the Hox genes are placed alongside their clade in the tree. (B) Shx genes show elevated sequence evolution following loss of ShxD in Lycaenidae. Results of pairwise identity of Shx genes between Lycaenidae species and non-Lycaenidae species. For each gene (ShxA–C), pairwise identity between Lycaenidae and all other Lepidoptera species with normal Shx gene count (darker shade boxplot) is compared with pairwise identity between all Lepidoptera species with normal Shx gene count (lighter shade boxplot). Each pair of boxplots (light shade and dark shade) are colored according to the color code for each of the Shx genes. Wilcoxon rank-sum test was performed between pairwise identity for Lycaenidae and non-Lycaenidae species: (*) P-value < 0.05.

Open in new tabDownload PowerPointLink to figure

The ShxD gene was lost several times across the lepidopteran phylogeny. One loss event is shared by the Lycaenidae species (the “blue” butterflies), suggesting gene loss along the ancestral branch of this diverse family. Loss of ShxD in these species is associated with longer branch lengths in the remaining Shx genes (ShxA-C) in a phylogenetic analysis (Fig. 4A). The significantly increased rate of substitution in the homeodomain of the three remaining Shx genes (ShxA, ShxB, and ShxC) following the loss of the ShxD gene was confirmed by assessing pairwise sequence identity between Lycaenidae species and non-Lycaenidae species (Fig. 4B).

Independent tandem duplication of Shx genes

As noted above, the number of Shx genes in ditryisian lepidopterans is usually four, or three in those taxa that have lost ShxD. However, there are some notable examples of Shx gene duplication. In earlier work using limited sampling and fragmentary genome assemblies, the large number of Shx loci in B. mori was considered an exception to the normal pattern (Chai et al. 2008; Ferguson et al. 2014). The expanded sampling generated by the Darwin Tree of Life Project reveals a more complex pattern of evolution. Although presence of four Shx genes is still the norm for Lepidoptera, we find multiple independent examples of dramatic Shx gene number expansion (Fig. 1B; Supplemental Fig. S3). In 18 species of moth (Zeuzera pyrina, Blastobasis lacticolella, Blastobasis adustella, Parapoynx stratiotata, Idaea aversata, Phalera bucephala, E. similis, Schrankia costaestrigalis, Spilarctia lutea, Spilosoma lubricipeda, Eilema depressum, Eilema sororculum, Mythimna ferrago, Mythimna impura, Noctua pronuba, Noctua janthe, Noctua fimbriata, and Apamea monoglypha) and one butterfly species (Aporia crataegi), a large number of homeobox loci was found between zen and pb, each representing extensive tandem duplication of Shx genes (Supplemental Figs. S2, S5). In these species, the copy number ranges from nine copies of Shx genes in N. pronuba to 51 Shx copies in M. impura, up to 165 Shx loci in A. monoglypha, the largest number observed. These species have a mean of 32 copies of zen/Shx and a median of 20 copies. The rate of sequence divergence of the Shx genes following tandem duplication varies between species, with tandemly duplicated copies in three species showing significantly lower pairwise identity (larger sequence change compared with the distribution of pairwise identity in nonduplicated orthologs), duplicated copies from three species showing higher pairwise identity (possibly reflecting recent duplication), and four species showing no significant difference.

This shows that the Shx expansion phenomenon is more widespread across Lepidoptera than previously recognized. In some cases, we observe tandem duplication of Shx genes in closely related species, for example, two Blastobasis species, three Noctua species, and two Mythimna species, suggesting that these events occurred in the common ancestor of each of these lineages or that these lineages are prone to Shx duplication. In total, we detect at least 11 cases of independent expansion of the Shx genes in addition to the previously recognized B. mori expansion. We rarely see clearly intermediate cases: We detect either a conservative pattern of three to six Shx genes or a dramatically expanded set of Shx genes.

We investigated whether retrotransposon activity may have impacted the copy number variation observed. Retrotransposons, particularly LINE elements, can facilitate nonallelic homologous recombination, resulting in segmental duplications and gene cluster expansions (Startek et al. 2015; Janoušek et al. 2016; Thybert et al. 2018). Repeat content across the whole genomes of 66 representative species was estimated using a combination of RepeatModeler and RepeatMasker pipelines (see Methods; Supplemental Fig. S6). To test the relation between transposon activity and the Hox gene cluster, transposable element (TE) density was annotated in windows of 5000 bases within the Hox cluster (lab was excluded from this analysis owing to its distant position). The density of the major classes of TEs (LINEs, SINEs, LTR, and DNA) was compared between the region containing the Shx genes and the remaining Hox cluster. A significantly increased density of the LINE elements was observed within the Shx gene region relative to the rest of the Hox gene cluster in 14 of 19 species with large tandem duplications (Wilcoxon rank-sum test; P < 0.05, Bonferroni correction) (Fig. 5A). These 14 species were Z. pyrina, B. lacticolella, B. adustella, E. similis, S. lutea, S. lubricipeda, E. depressum, E. sororculum, M. ferrago, M. impura, N. janthe, N. fimbriata, and A. monoglypha (Fig. 5B). Further examining the correlation between Shx expansion and LINE proliferation in the species Z. pyrina, which has 25 copies of ShxA (Supplemental Figs. S3, S7A), we see that there is clear evidence for tandem duplication of specific LINE elements (LINE/CR1), which are all in the same orientation and evenly interspersed between the ShxA copies (Supplemental Fig. S7B). The five species with large tandem duplications but no LINE enrichment were N. pronuba, P. stratiotata, Idaea inversata, P. bucephala, and A. crataegi. For several species, there is clear evidence that repeat elements were tandemly duplicated along with Shx loci. For example, P. stratiotata, with 16 ShxD copies, has a repeated array of Low_complexity, Simple_repeat, and LINE/L2 elements between each ShxD. Quite different patterns are seen in P. bucephala and Z. pyrina. There is no association, beyond the presence of LINEs, between repeat type, repeat number, and which Shx gene is duplicated.

Figure 5.

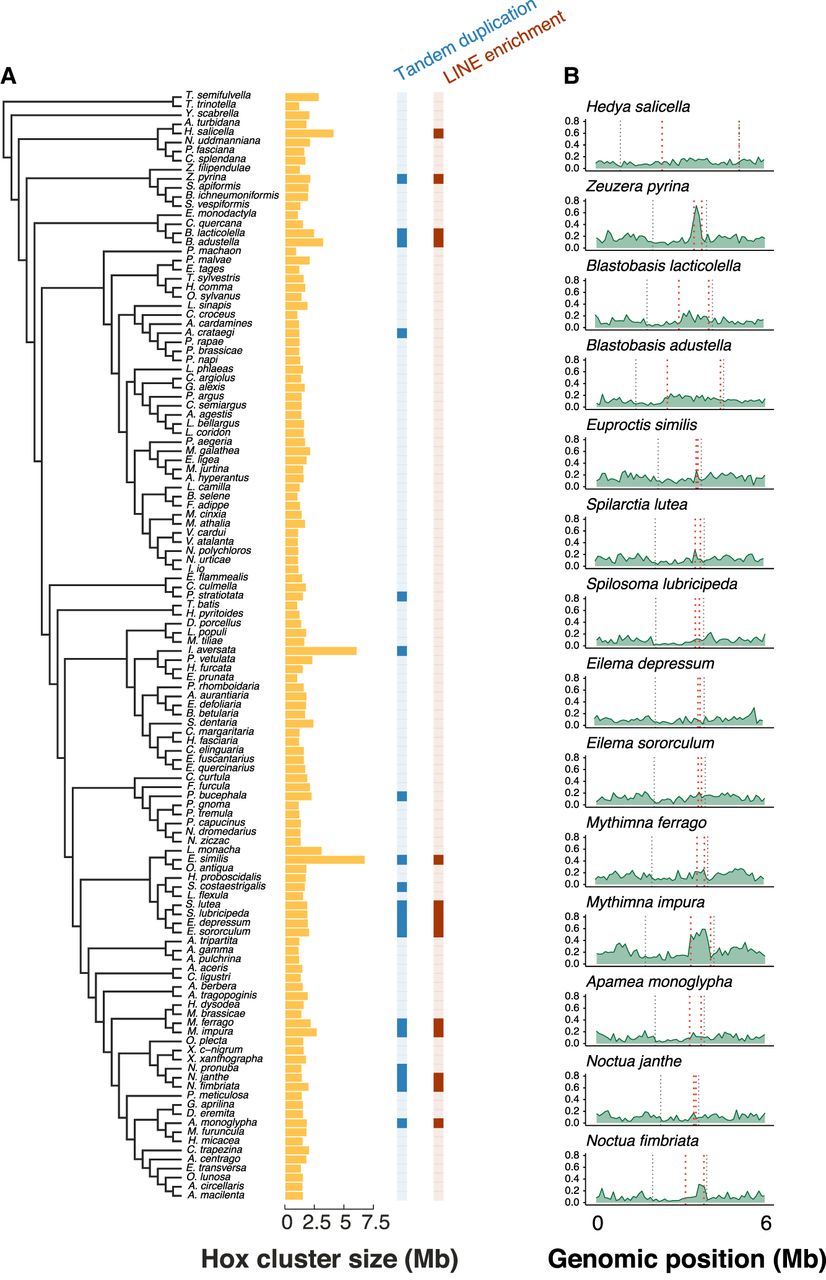

Association between increased LINE density and extensive tandem duplication of Shx genes. (A) Left shows the species tree of 122 Lepidoptera species. Bar chart in yellow corresponds to the length of the Hox cluster (excluding labial) for each species in the tree measured in Megabases. The column in blue indicates those species with large tandem duplications of Shx genes in the Hox cluster (dark blue) or those with a “normal” number of Shx genes (light blue). The column in red indicates species with significantly enriched density of LINE elements (dark red) within the region containing the Shx genes. (B) LINE density plot across the Hox cluster plus 3 Mb either side; this is shown for 14 species with enriched LINE density in the region containing Shx genes. The outer black dashed lines represent the edges of the Hox cluster (Abd-B to ro), and the inner red dashed lines represent the edges of the Shx genes (ShxD to ShxA).

Open in new tabDownload PowerPointLink to figure

Other homeobox gene clusters

The Hox genes are the best-studied clustered homeobox genes, but other examples also occur. A cluster of three neuronally expressed homeobox genes from the PRD class—Homeobrain (hbn), Retinal Homeobox (Rx), and Orthopedia (otp)—has been conserved in most animal lineages since the cnidarian–bilaterian ancestor (Mazza et al. 2010). The gene cluster has also been found in Drosophila and representatives of Hymenoptera and Coleoptera, with a conserved gene order and comparable intergenic distances (Walldorf et al. 2000; Mazza et al. 2010). Across the lepidopteran species in this study, we also find that the cluster is conserved with the same gene order (Supplemental Fig. S8). Genomic distances between genes are larger in lepidopteran species than in other insects studied to date, with an average overall cluster length of 348 kb. Although gene order is conserved, transcriptional orientation varies between species.

In Drosophila, several “NK” genes form a compact homeobox gene cluster comprising tin (also known as NK4), bap (also known as NK3), two “Lbx” genes (lbl, lbe), C15 (Tlx), and slou (also known as NK1) (Jagla et al. 2001; Luke et al. 2003; Garcia-Fernàndez 2005). Other NK-related genes are found more distantly and may have been translocated away, including Dr (Msx), ems (Emx), and Hmx (NK5). Other groupings of NK genes are found in other animal genomes (Jagla et al. 2001; Luke et al. 2003; Garcia-Fernàndez 2005). In contrast to Hox gene clusters, we find the NK gene cluster has undergone extensive gene order changes during insect evolution (Fig. 6A). Across all insect orders, we find tight linkage between tin, bap, and Lbx; we also find Dr is closely linked in several orders, but not in Diptera represented by Drosophila. Outside these genes, there is considerable variation between orders.

Figure 6.

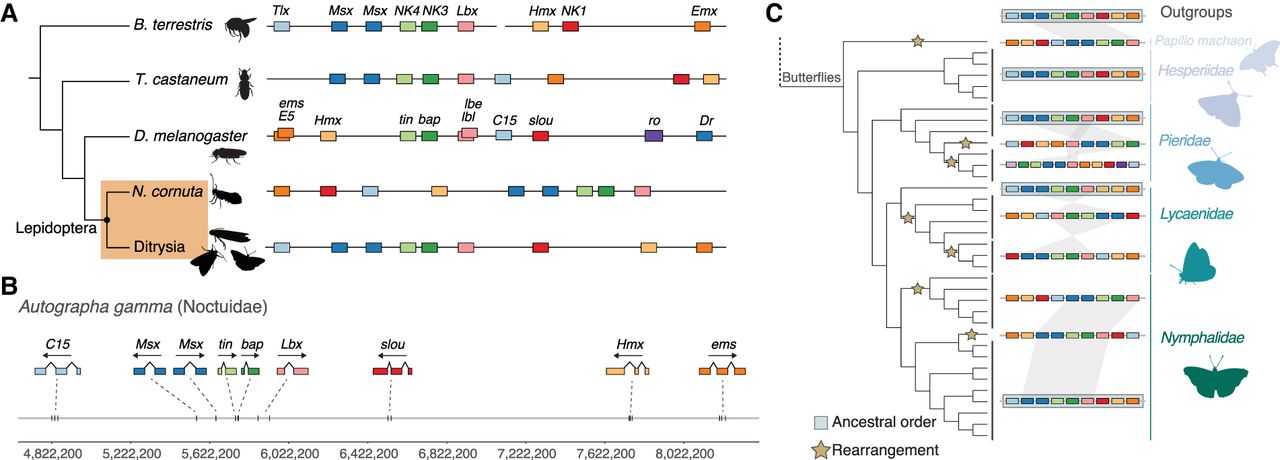

NK gene cluster evolution across Insecta. (A) Comparison of the general structure of the NK gene cluster between representative species for Hymenoptera (B. terrestris), Coleoptera (T. castaneum), Diptera (D. melanogaster), and Lepidoptera. Lepidoptera are shaded in an orange box and split between non-Ditrysia species (N. cornuta) and Ditrysia (represented by 122 species in our data set). (B) Genomic location of NK genes in A. gamma with corresponding exon structures and genomic distances annotated below. Silhouette images of B. terrestris, T. castaneum, and D. melanogaster were taken from PhyloPic (phylopic.org). (C) Left shows the species topology for the 36 butterflies in the data set, along with an outgroup representative. Rearrangements in the NK cluster are annotated on the branches of the tree where they were estimated to have occurred (represented by yellow stars). Black lines spanning tips on the tree group species, which show the same structure and order in the NK gene cluster. The NK gene cluster is represented by colored boxes, in the “canonical” order of Tlx (C15), Msx (Dr), NK4 (tin), NK3 (bap), Lbx (lbe), NK1 (slou), Hmx (NK5), and Emx (ems). Species with the NK genes in this order are shadowed by a blue box. Synteny between the closely linked genes of both Msx (Dr) genes, NK4 (tin), NK3 (bap), and Lbx (lbe) is represented by shaded blocks to show changes in the order and structure of the NK cluster.

Open in new tabDownload PowerPointLink to figure

The organization of the NK gene cluster in A. gamma (silver Y moth) is typical for Lepidoptera (Fig. 6B). We find a “core” of five homeobox genes (two Msx, tin, bap, and Lbx) spanning ∼370 kb, plus linkage to C15 on one side and slou, Hmx, and ems on the other (Fig. 6B). The arrangement of these genes is generally conserved across most Lepidoptera species (Fig. 6; Supplemental Fig. S9). However, rearrangements within the cluster are observed in some butterfly lineages. For example, in the three Pieris species, the order of the tin/bap/Lbx/Dr core cluster is inverted in all species, C15 is found on a separate chromosome, and the Abox and Bari homeobox genes are located close to each end of the cluster (Fig. 6C; Supplemental Fig. S9). Rearrangements are also found in both Lycaenidae and Nymphalidae, with different gene orders suggesting independent rearrangements (Fig. 6C). We infer that a series of translocation and inversion events has occurred independently. In lineages such as the Pieris butterflies, these changes in the structure of the NK gene cluster reflect general trends of genome remodeling (Hill et al. 2019). The changes within the NK cluster within butterflies represent at least seven likely rearrangement events, contrasting to the general stability in gene order observed in the Hox cluster. Rearrangements were also found outside the butterflies, with independent changes seen in Ypsolopha scabrella, Emmelina monodactyla, Carcina quercana, Clostera curtula, Laspeyria flexula, Abrostola tripartite, and N. cornuta. These NK cluster rearrangements in moths include translocation of one, two, or three of the slou/Hmx/ems genes to the opposite end of the cluster, as well as relocation of C15 to the opposite end of the cluster in five of the seven species (Supplemental Fig. S9). In contrast to the Hox gene cluster, the Hi-C contact data do not provide evidence for a strong TAD spanning the NK homeobox gene cluster (Supplemental Fig. S4B).

Overall stability of homeobox gene numbers

Although the expression, function, and evolution of homeobox genes has been extensively studied in insects, few studies have made comparisons across an entire insect order. In addition, most studies have focused on Hox genes, with less attention paid to the many other types of homeobox genes or to genomic organization. To a large degree, this is a consequence of the limited number of high-quality chromosomal-level genome assemblies available until very recently. With advances in DNA sequencing technology, coupled with scaffolding using Hi-C, this limitation is being overcome (The Darwin Tree of Life Project Consortium 2022). To better understand homeobox gene evolution in Lepidoptera, we annotated genes from all homeobox classes in 123 well-assembled Lepidoptera genomes.

We found general stability in homeobox gene numbers across the order, with most species having approximately 100 homeobox loci from all classes. This overall consistency in homeobox gene content may relate to overall body plan stability across Lepidoptera. There are some notable variations in gene content between species and families; most of these concern the Hox genes, including the Shx genes, discussed below. Otherwise, we see a degree of consistency, in gene number if not in gene organization. Leaving Hox genes aside, most homeobox genes are dispersed in these genomes, and linkages are not conserved. The NK homeobox genes and the Homeobrain, Retinal Homeobox, and Orthopedia genes from the PRD class are an exception, with both sets of genes having a conserved cluster arrangement in Lepidoptera. The NK cluster usually contains nine genes and spans 2.4 Mb to 10 Mb. In these genes, we find tight clustering across insects of Msx (Dr), NK4 (tin), NK3 (bap), and Lbx (lbe), suggestive of a functional constraint or common regulation, whereas the remaining genes Tlx (C15), NK1 (slou), Hmx (NK5), and Emx (ems) have more variation in their gene order. The Homeobrain, Retinal Homeobox, and Orthopedia cluster is a compact cluster, with an average length of ∼300 kb. The genes are highly conserved in order but vary in gene orientation across Lepidoptera.

The unusual lepidopteran Hox gene cluster

Hox genes are arranged in genomic clusters as a result of tandem gene duplication, followed by selective pressure that has kept Hox genes together as neighbors for hundreds of millions of years. The nature of the selective pressure is not fully understood but may in part be related to long-range regulatory elements important for spatial colinearity of gene expression (McGinnis and Krumlauf 1992; Duboule and Morata 1994; Lemons and McGinnis 2006). Some changes to the structure of the Hox gene cluster have been found in insects (Lewis 1978; Duncan 1987; Ferrier and Akam 1996; Powers et al. 2000; Brown et al. 2002; Negre and Ruiz 2007), and some larger rearrangements were observed in noninsect arthropods (Cook et al. 2001; Grbić et al. 2011; Chipman et al. 2014; Pace et al. 2016; Leite et al. 2018), but we have a fragmentary picture of insect Hox cluster evolution thus far. Indeed, within Lepidoptera, the complete structure of a Hox gene cluster has not been reported; even in the pioneering studies on B. mori Hox genes, the precise location of the labial gene could not be resolved (Yasukochi et al. 2004; Chai et al. 2008). With the availability of chromosomal-level genome assemblies, this picture is changing. This study attempts to characterize Hox gene cluster evolution in an insect order on a large scale. Among the findings were (1) determining that the labial gene is located at a distant position beyond Abd-B, likely relocated by an inversion event, and (2) the finding that the non-Hox gene ro is very closely linked to pb, in the position where labial is found in other insects. These two features are seen in all the ditrysian Lepidoptera we analyzed, with an intermediate situation found in N. cornuta, a member of the Micropterygidae. This basal moth has a gene order of pb, ro, and lab, suggesting that movement of ro into the Hox gene cluster occurred in an ancestor of extant Lepidoptera, whereas the inversion that moved the lab gene was a later event. However, even in N. cornuta, the lab gene is 3.8 Mb from the end of the cluster, suggesting that it had already “escaped” from common control in the earliest Lepidoptera.

What could have allowed these rearrangements in Lepidoptera? One hypothesis is that all functional reasons for maintaining Hox gene clustering have been lost in Lepidoptera, and random rearrangements have been permitted in evolution. An alternative hypothesis is that it is just the lab gene that has been permitted to “escape,” perhaps owing to loss of common regulatory control. Our analysis of topologically associated domains (TADs), and comparison to the NK gene cluster, suggests the second hypothesis is most likely. We found a pattern of physical association of chromatin containing the Hox gene cluster, but only from pb to Abd-B. We find that lab and ro are located outside of this TAD across all species sampled. This suggests that it is the lab gene specifically that has escaped from any common regulation or control; there is evidence that the remaining Hox genes maintain physical association in three dimensions and are thus under conserved regulation (Krefting et al. 2018). Similarly, although the ro gene has moved to be adjacent to the rest of the Hox cluster, it has not been encompassed within the same TAD. Consistent with this conclusion, the ro gene has moved secondarily to the Abd-B end of the Hox cluster in four closely related Pieridae species (A. crataegi, Pieris rapae, Pieris brassicae, and Pieris napi) (Supplemental Fig. S3).

Moths take the record for the most Hox loci

The number of Hox genes is variable within insects, with most variation owing to duplications of noncanonical Hox genes, especially the zen gene (the derived ortholog of the paralogy group 3 Hox gene) (Falciani et al. 1996). For example, the fruit fly D. melanogaster has three loci derived zen duplication: zen, zen2, and bcd, whereas Tribolium castaneum has two (Tczen1, Tczen2) (Brown et al. 2002). Several Lepidoptera have five zen-derived genes (zen, ShxA, ShxB, ShxC, ShxD) (Ferguson et al. 2014), with B. mori having around 15 (Chai et al. 2008; Ferguson et al. 2014). In contrast, during chordate evolution, tandem duplication of canonical Hox genes gave rise to 15 Hox genes in amphioxus and 14 in the common ancestor of vertebrates (Powers and Amemiya 2004; Holland et al. 2008). Genome duplications during vertebrate evolution increased the total number of Hox genes; for example, human and mouse have 39 Hox genes, the African butterfly fish Pantodon buchholzi has 45 Hox genes, the Atlantic eel Anguilla anguilla has 73 Hox genes, and the Atlantic salmon Salmo salar has 118 Hox genes and pseudogenes (Mungpakdee et al. 2008; Henkel et al. 2012; Martin and Holland 2014). Our analysis of Lepidoptera genomes has uncovered many cases of Hox gene duplication, including enormous arrays of Hox-derived loci. We find some moths have the highest number of Hox loci known to date.

We found two rare cases of single-gene tandem duplications in Lepidoptera, ftz in S. lutea (buff ermine moth) and Dfd in Acronicta aceris (sycamore moth), but otherwise, all variation in gene number was owing to gains and losses of zen-derived genes, including the Shx genes. Consistent with the study of Ferguson et al. (2014), it is true to a first approximation to say that most Lepidoptera have four Shx genes, plus zen, such that the full complement of Hox-derived genes is usually 14 (lab, pb, zen, ShxA, ShxB, ShxC, ShxD, Dfd, Scr, Antp, ftz, Ubx, abd-A, Abd-B). The minor exceptions we find to this rule include (1) a moth in the basal family Micropterygidae, which has multiple zen-derived genes, although these lack the distinctive amino acid signatures of Shx genes and are likely an independent duplication; (2) the six-spotted burnet moth, Zygaena filipendulae, with only two Shx genes, annotated as ShxB and ShxC (Supplemental Fig. S3); and (3) butterflies in family Lycaenidae and the genus Melitaea, which have each independently lost ShxD (although M. cinxia has four copies of Shx owing to a subsequent duplication of ShxA).

However, the biggest exceptions to the “four Shx” rule are the cases we find of independent, very extensive tandem duplication of Shx genes in several evolutionary lineages of moths. These expansions ranged from the seven copies in S. costaestrigalis (pinion-streaked snout moth) to an astonishing 165 loci found in A. monoglypha (dark arches moth). Other examples include 58 and 66 copies in B. lacticolella and B. adustella, respectively; 19 copies in P. stratiotata (Boyes et al. 2022a); 24 copies in P. bucephala (buff-tip moth) (Boyes et al. 2022b); 20 copies in S. lutea (buff ermine moth); and 34 copies in N. fimbriata (broad-bordered yellow underwing) (Holland et al. 2021). The particular Shx genes that underwent tandem duplication differed between species, with some showing duplication of single genes (e.g., ShxD in P. stratiotata, N. pronuba, and I. aversata; ShxA in Z. pyrina) and others having multiple copies of several of the four Shx genes (Supplemental Fig. S5). It is currently unclear whether these large gene arrays are adaptive, having been driven by selection, or whether they are neutral and a consequence of a genomic region prone to duplication. In other gene families, large changes in copy number have been found to be adaptive and related to certain environments or behaviors (Briscoe et al. 2013; Cheng et al. 2017; Rane et al. 2019; Chakraborty et al. 2021). The Shx genes are expressed in the serosa during development, an extraembryonic tissue implicated in innate immunity and desiccation resistance in insects (Panfilio 2008; Jacobs et al. 2013, 2014, 2022). It is therefore possible that Shx duplication is an adaptation associated with modifications to the egg, and indeed, many of the highly duplicated genes show increased rates of sequence evolution (Fig. 4A). One possibility is that specialization of multiple Shx genes permitted evolutionary refinement of serosal function, which may be important to the survival of lepidopteran eggs laid on exposed surfaces of vegetation or in other challenging niches (Holland et al. 2017). However, although some of the moth species with large Shx expansions do have unusual ecology (such as aquatic eggs in P. stratiotata), we have not found a common developmental pattern, environmental link, or egg laying behavior among all species with large tandem duplications of Shx genes.

The alternative hypothesis, that extensive tandem duplication of Shx genes is neutral, would demand an explanation for why the number of Shx genes is stable at four (or three) in most lepidopteran lineages, yet undergoes dramatic expansion in others. We do not find a pattern consistent with a widespread stochastic gain and loss: The pattern is one of either stability or expansion. We propose that such a pattern is indicative of an underlying mutational mechanism driving duplication in some species and not others. One possible mutational mechanism relates to transposable element content. In almost all species in which large tandem duplication occurs (14/19), we find significantly increased density of the LINE elements in the region containing the Shx genes relative to the rest of the Hox cluster (Fig. 5). Generally, transposon activity is highly regulated and reduced within the Hox cluster, owing to the importance of the order and structure of the genes for proper development (Fried et al. 2004). However, if LINE elements successfully invade the Hox gene cluster, they could potentially promote tandem gene duplication through nonhomologous pairing at meiosis. Thus, a neutral explanation could be that LINE elements invaded in some species and caused an increased rate of duplication mutations, without phenotypic effect.

The adaptive and the neutral hypotheses can be reconciled, because even if initial duplication is neutral, the new loci could be substrates for later adaptive evolution and the TEs themselves could alter gene regulation. By analogy, enrichment of TEs within the Hox gene clusters of Anolis lizards correlates with rates of speciation and affects the expression of Hox genes during development (Feiner 2016, 2019). It is interesting to note that invasion of TEs into Anolis lizard Hox clusters is not associated with gene duplication. This is possibly because all vertebrate Hox genes have anteroposterior expression domains that could be disrupted by tandem duplication; in Lepidoptera, the zen gene has lost ancestral regional expression and gained tissue-specific expression.

Data acquisition

The genome assemblies used in this analysis were produced by the Darwin Tree of Life Project (The Darwin Tree of Life Project Consortium 2022) and can be found under the European Nucleotide Archive (ENA; https://www.ebi.ac.uk/ena/browser/home) under accession number PRJEB40665 and on the Darwin Tree of Life (DToL) portal page (https://portal.darwintreeoflife.org). The genome for a non-ditrysian species was obtained from the recent sequencing of the Micropterigidae species N. cornuta (Li et al. 2021). Sequences for all homeodomains from three insects (D. melanogaster, T. castaneum, Apis mellifera) were downloaded from homeodb (Zhong et al. 2008; Zhong and Holland 2011; http://homeodb.zoo.ox.ac.uk). Sequences for the lepidopteran-specific special homeobox genes (Shx) were obtained from Ferguson et al. (2014). Summary of genomes used, their shortened names, family membership, GenBank accession IDs, and Project IDs are found in Supplemental Table S1.

Homeobox gene identification

To identify homeobox genes in the assembled genomes, the homeodomain protein sequences were used as queries in a TBLASTN search against the lepidopteran genomes (e-value threshold of 1 × 10⁻⁵). Overlapping hits from the lepidopteran genomes were filtered to retain a single sequence per homeobox gene with the longest sequence match. The resulting sequences from the lepidopteran genomes were then subsequently used in a reciprocal BLASTX search against the homeodomain protein data set. For hits with significant percentage identity (>70%), the reciprocal BLAST search allowed for the initial identification of the given homeobox gene. A second round of sequence similarity searches was performed using MMseqs2 (Steinegger and Söding 2017) and 1 kb on either side of the homeobox genes annotated from the initial BLAST search. The scripts for each step are available at GitHub (https://github.com/PeterMulhair/HbxFinder). For divergent sequences, identification was performed using phylogenetic analysis (see Molecular Analysis of Homeobox Evolution). Visualization of the Hox gene clusters and gene tree used R 4.0.3 (R Core Team 2021) using gggenes (https://github.com/wilkox/gggenes) and ggtree (Yu et al. 2017), respectively. The newly identified homeodomain nucleotide sequences were then translated into an amino acid format using the sixpack package from EMBOSS (Madeira et al. 2019); amino acid sequences with the highest identity to known homeodomain sequences were retained.

Homeobox gene expression

The expression of all homeobox genes identified in our data set of 123 species was assessed using whole-body RNA-seq data from a representative set of seven species (Biston betularia, Limenitis camilla, Nymphalis urticae, Pararge aegeria, Pieris rapae, Vanessa atalanta, Vanessa cardui). RNA-seq data were downloaded from the DToL portal page. Transcriptome assembly was performed for each species using Trinity v2.8.5 (Grabherr et al. 2011). Next, for each transcriptome assembly, the transcript abundance was calculated using kallisto v0.44 (Bray et al. 2016). Homeobox gene identification was then performed in each species using a reciprocal BLAST approach.

Species tree inference

A species tree for the 123 lepidopteran species in our data set was generated using gene sets obtained from BUSCO v5.1.2 (Manni et al. 2021). First, genes were annotated using the Lepidoptera BUSCO gene sets. Next, the busco2phylo-nf pipeline (https://github.com/lstevens17/busco2phylo-nf) was used to extract FASTA files for each annotated gene, ensuring 100% species coverage in each one. Each gene was aligned using MAFFT v7.467 (Katoh et al. 2005), and gene trees were inferred using IQ-TREE v2.0 (Minh et al. 2020), using ModelFinder to find the model of best fit (Kalyaanamoorthy et al. 2017). Finally, a species tree was inferred using the supertree approach in ASTRAL v5.7.7 (Zhang et al. 2018).

Molecular analysis of homeobox evolution

Phylogenetic reconstruction was performed using the homeodomain amino acid sequences Homeodomain sequences were aligned using MAFFT v7.467 (Katoh et al. 2005), and maximum likelihood trees were built using IQ-TREE v2.0 (Nguyen et al. 2015) and the LG + G model of sequence evolution. Tree visualization was performed using ggtree (Yu et al. 2017). To test for changes in rates of homeodomain sequence evolution of the Shx genes between the Lycaenidae species (which lost ShxD) and all other lepidopteran species with a normal set of Shx genes, we measure pairwise identity between species as a proxy for evolutionary rate. This analysis was performed using PhyKIT with the phykit pairwise_identity command (Steenwyk et al. 2021). To measure whether selection was relaxed or intensified in any of the three remaining Shx genes on any of the Lycaenidae branches, we used the RELAX model (Wertheim et al. 2015) implemented in HyPhy (Kosakovsky Pond et al. 2020).

Hi-C data processing and TAD identification

Hi-C reads were mapped to the genomes using BWA 0.7.5a-r405 (Li 2013). HiCExplorer was then used to process the Hi-C data to form interaction maps, annotate the TADs and visualize the results (Ramírez et al. 2018).

Repeat annotation and TE density analysis

TEs were annotated using both the RepeatModeler and RepeatMasker pipelines. For each genome tested, a de novo repeat library was generated from the genome assemblies using RepeatModeler2 (Flynn et al. 2020). This library was combined with the RepeatMasker Insecta library (Bao et al. 2015) and the SINE database (Vassetzky and Kramerov 2013) and was filtered for any protein-coding genes and repeat elements below 50 bases in length. Repeats were classified using RepeatMasker v4.1.0 (Smit et al. 2013–2015), and regions containing LINE, SINE, LTR, and DNA elements were extracted for subsequent analysis. Next, for each of the four broad TE classes, densities in 5-kb windows were calculated first for the regions containing the Shx genes and second for the full Hox gene cluster minus the Shx gene region and lab. Enrichment for TE density in the Shx gene region compared with the remaining Hox cluster was performed for each TE class using the Wilcoxon rank-sum test with Bonferroni correction in the SciPy Python package (Virtanen et al. 2020). TE density enrichment across the Lepidoptera phylogeny was visualized using the Toytree Python package (Eaton 2020). These analyses were not intended as exhaustive but to give insight into TE density within the Hox gene cluster.
