Snapshot of a Large Dynamic Replicon in a Halophilic Archaeon: Megaplasmid or Minichromosome?

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

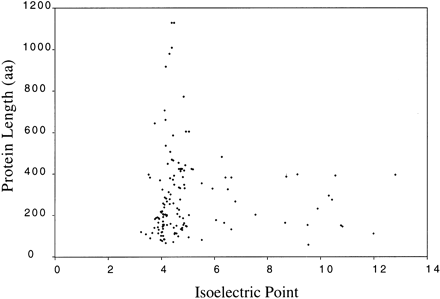

Plot of calculated isoelectric point versus length of 136 predicted proteins encoded by pNRC100. Isoelectric points were calculated by use of the GCG isoelectric program (Devereux et al. 1984). The range of calculated pI was 3.24–12.81 and the average pI was 5.05. The range of sizes was 56–1128 amino acids and the average size was 290 amino acids.

This Article

  1. Genome Res. 8: 1131-1141
