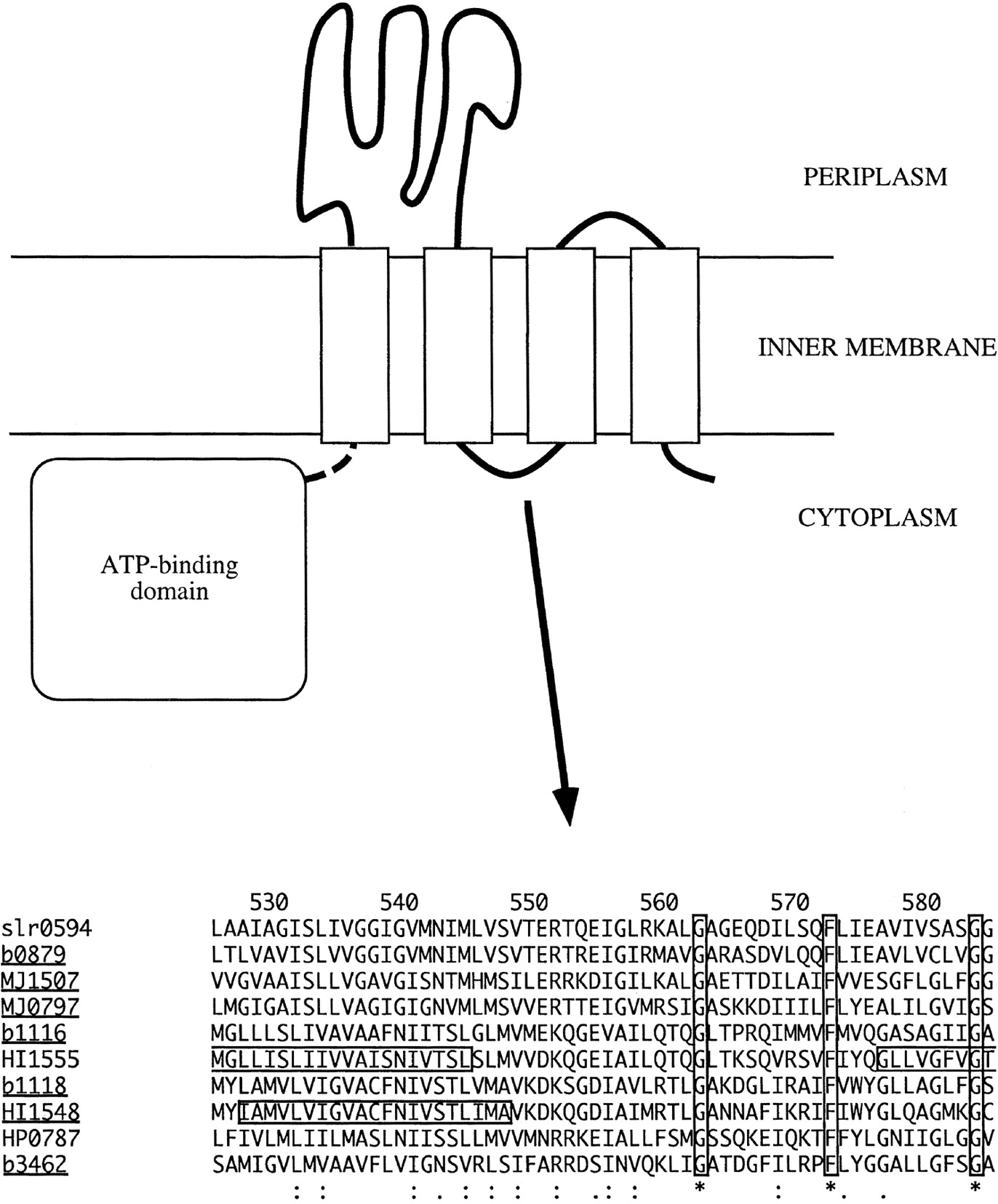

Figure 3.
The predicted architecture of an E. coli protein in group 3-1, b0879, which consists of the ATP-binding domain and the membrane protein domain. The G-X[9]-F-X[10]-G motif at a putative loop region has been identified by the multiple alignment of group 3-1 membrane proteins; the protein names in this group are underlined, and the boxes in the sequence data represent putative transmembrane regions derived from the SWISS-PROT entries, P44250 (HI1548) and P44252(HI1555). The alignment was obtained by CLUSTAL W (Thompson et al. 1994). The numbers above the alignment represent the residue positions of b0879.
