Aberrant homeodomain–DNA cooperative dimerization underlies distinct developmental defects in two dominant CRX retinopathy models

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

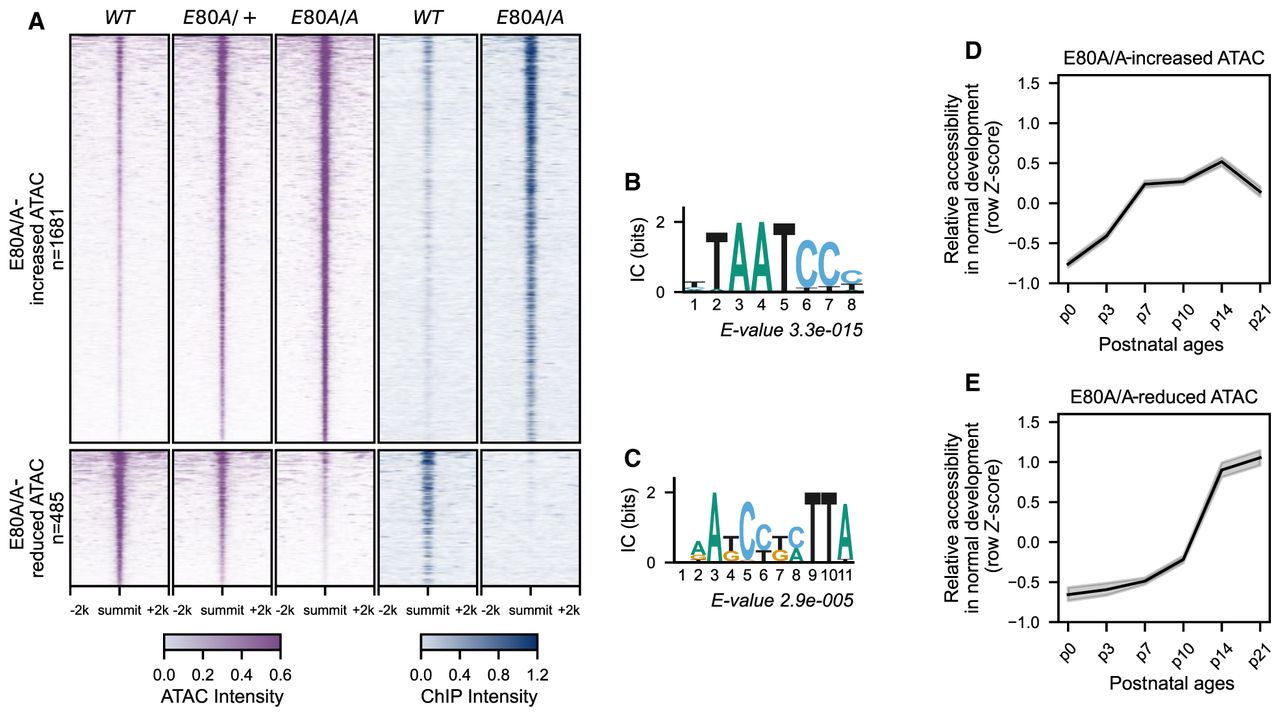

Figure 5.
Figure 5.

CrxE80A retinas show defective chromatin remodeling at CREs enriched for dimeric K50 HD motifs. (A) Heatmaps depicting the normalized ATAC-seq or CRX ChIP-seq signal intensities at CrxE80A differentially accessible ATAC-seq peaks. (B,C) PWM logos and enrichment significance E-values of STREME de novo discovered HD motifs under CrxE80A differentially accessible ATAC-seq peaks. (D,E) Line plots showing the average developmental accessibility kinetics of CrxE80A differentially accessible ATAC-seq peaks. The developmental ATAC-seq data are from Aldiri et al. (2017).

This Article

  1. Published in Advance December 23, 2024, doi: 10.1101/gr.279340.124 Genome Res. 35: 242-256
