Figure 3.

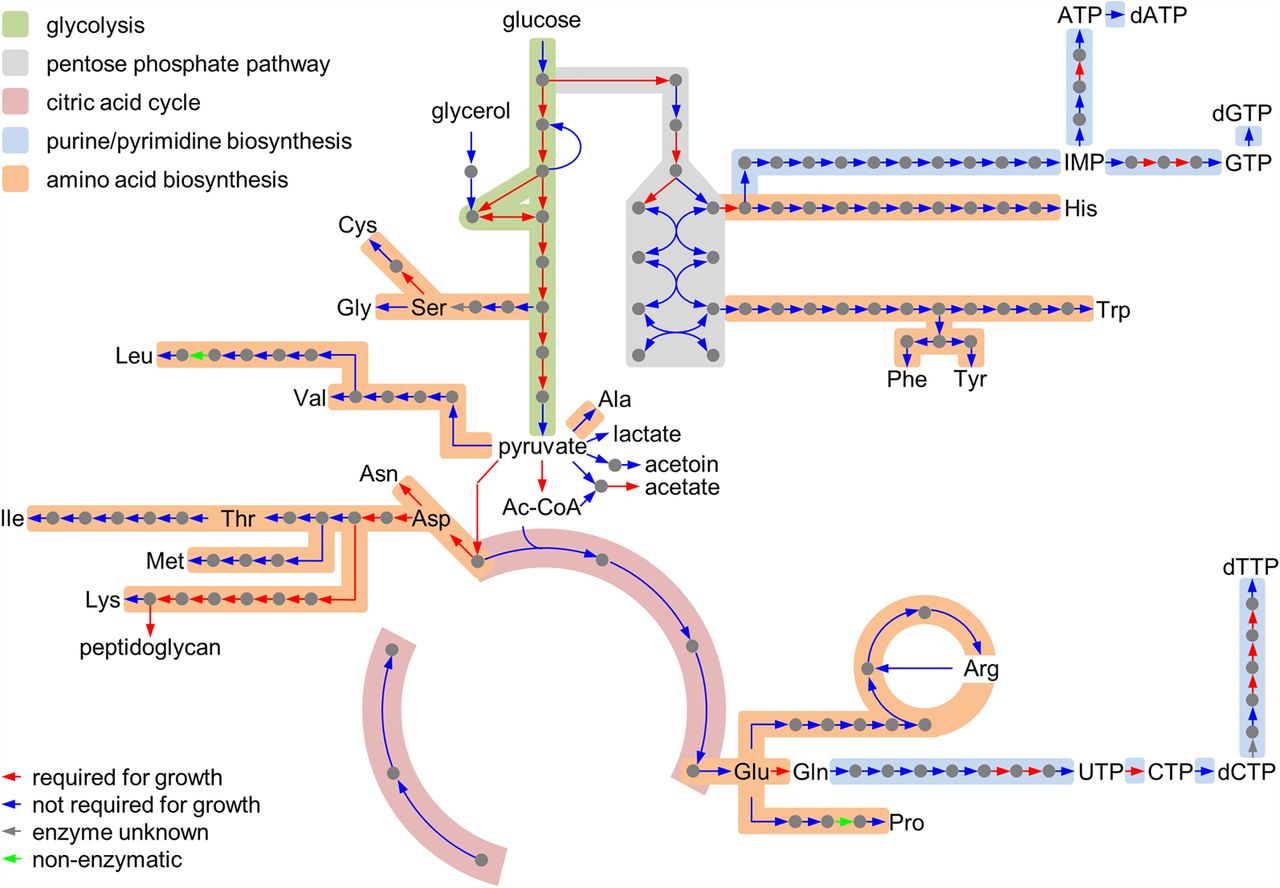

Necessity of genes acting in central carbon and nitrogen metabolism for L. monocytogenes growth in BHI broth. Scheme illustrating the metabolic pathways in central carbon metabolism, in biosynthesis of nucleobases and their corresponding nucleotides and biosynthesis of amino acids according to the KEGG database (https://www.genome.jp/kegg-bin/show_organism?org=T00066). Reactions are colored according to the necessity of their corresponding genes for growth of L. monocytogenes in BHI broth.
