Genomic basis of endosymbiont-conferred protection against an insect parasitoid

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.
Figure 1.

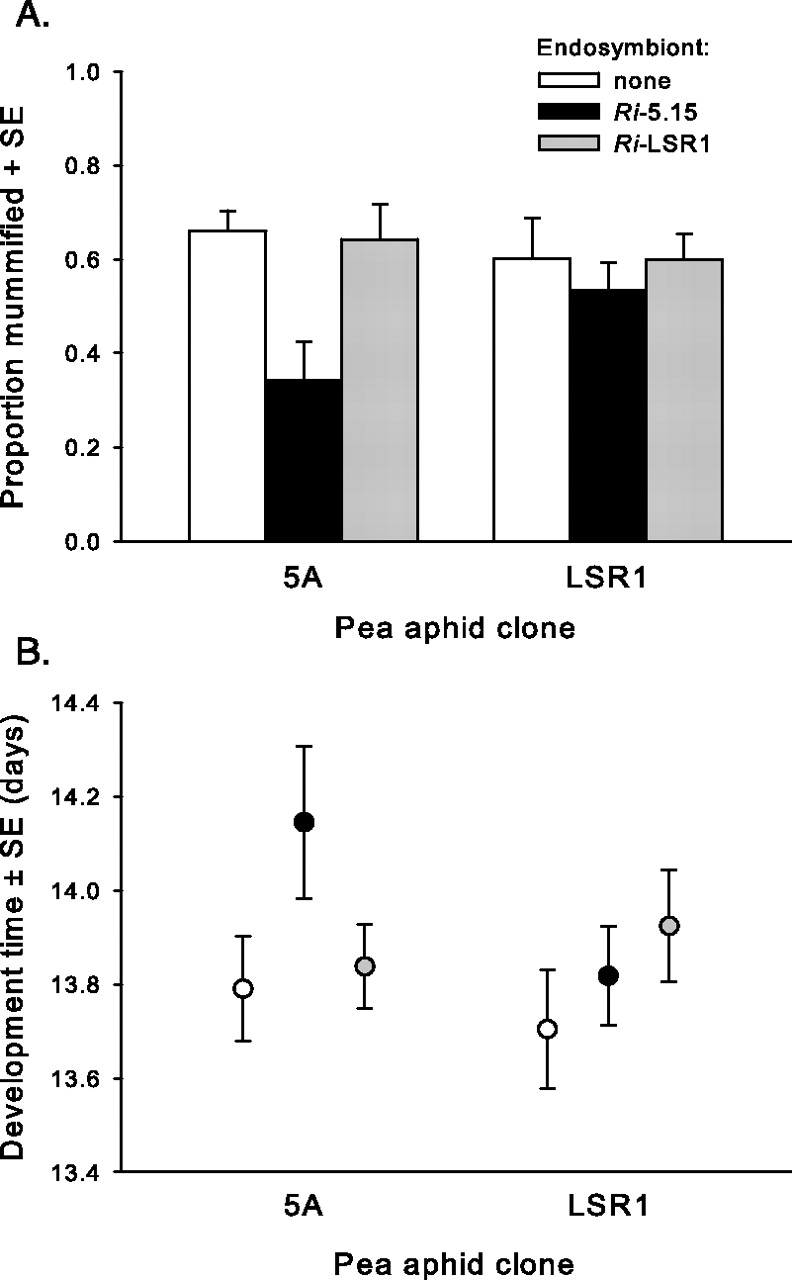

Effects of R. insecticola strains on development of A. ervi in two clones of A. pisum, 5A and LSR1. (A) Proportion of parasitized wasps developing successfully in each aphid line. (B) Developmental time (days from oviposition to emergence as adults) in wasps that did develop successfully in each aphid line. Values are means +/− SE.

This Article

  1. Published in Advance September 23, 2011, doi: 10.1101/gr.125351.111 Genome Res. 22: 106-114
