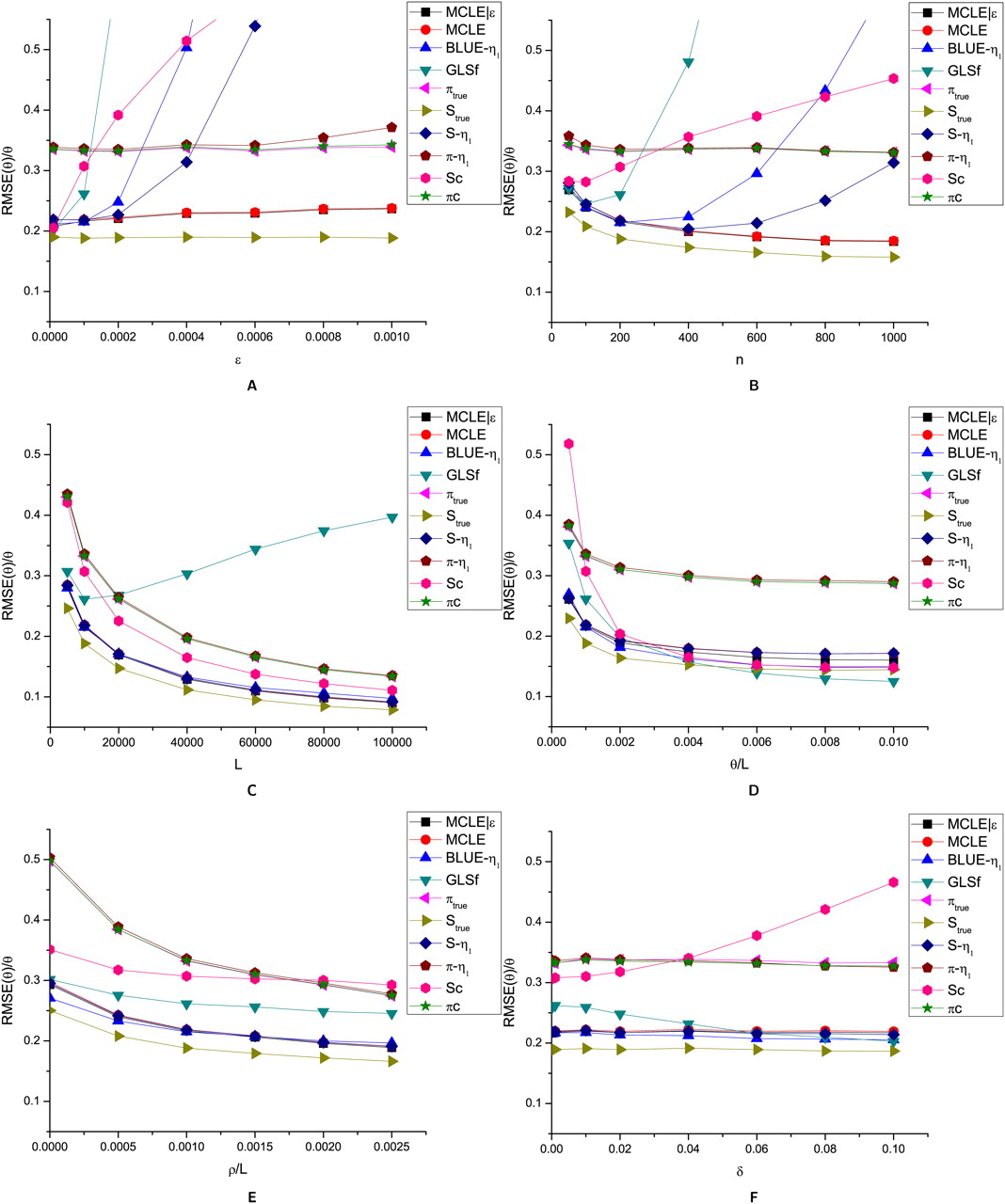

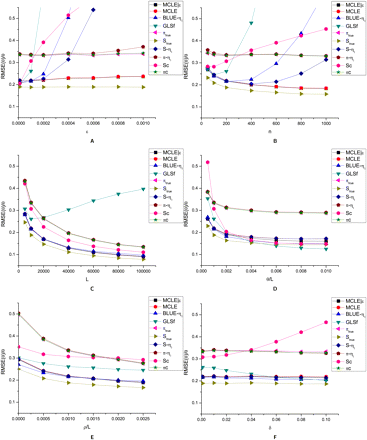

Figure 3.
Effects of ɛ (A), n (B), L (C), θ/L (D), ρ/L (E), and δ (F) on the root mean squared error of different θ estimators. MCLE|ɛ: MCLE(θ) assuming known ɛ; MCLE: MCLE(θ) assuming unknown ɛ; BLUE-η1:
. Unless shown on the x-axis, ɛ = 10−4, n = 200, θ/L = 10−3, L = 104, ρ/L = 10−3, and δ = 0.
