Defensins and the dynamic genome: What we can learn from structural variation at human chromosome band 8p23.1

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

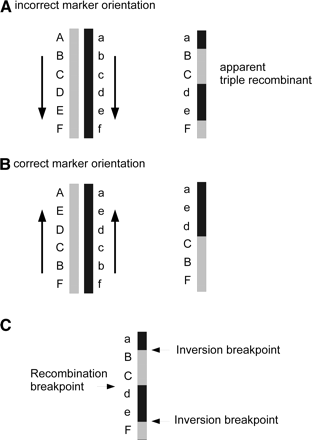

Figure 3.
Figure 3.

Apparent triple recombinants reflect inverted marker orientation. (A,B) A single recombination within an inversion between two inverted chromosomes is revealed as an apparent triple recombinant if the markers are assumed to be in the non-inverted orientation (Broman et al. 2003). (C) Analysis of the apparent triple recombinants can localize the site of recombination and the two breakpoints of the inversion.
