High-resolution Quantification of Specific mRNA Levels in Human Brain Autopsies and Biopsies

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

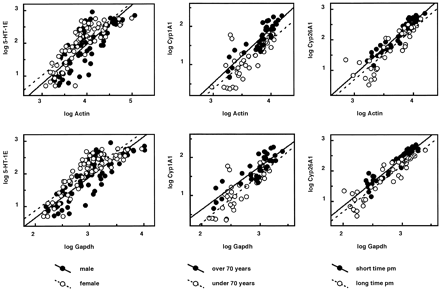

Figure 3.
Figure 3.

Significant differences in relative expression levels for sex, age, and time postmortem. ANCOVA analysis compare means of measured cDNA copies adjusted with the number of cDNA copies for ACTB and GAPD. Significant differences found in the analysis of 5-HT-1E, CYP26A1, and CYP1A1, as shown in Table 1, are visualized in the differences between the regression lines of the two groups compared. Axes show logarithm of measured number of cDNA copies.

This Article

  1. Genome Res. 10: 1219-1229
