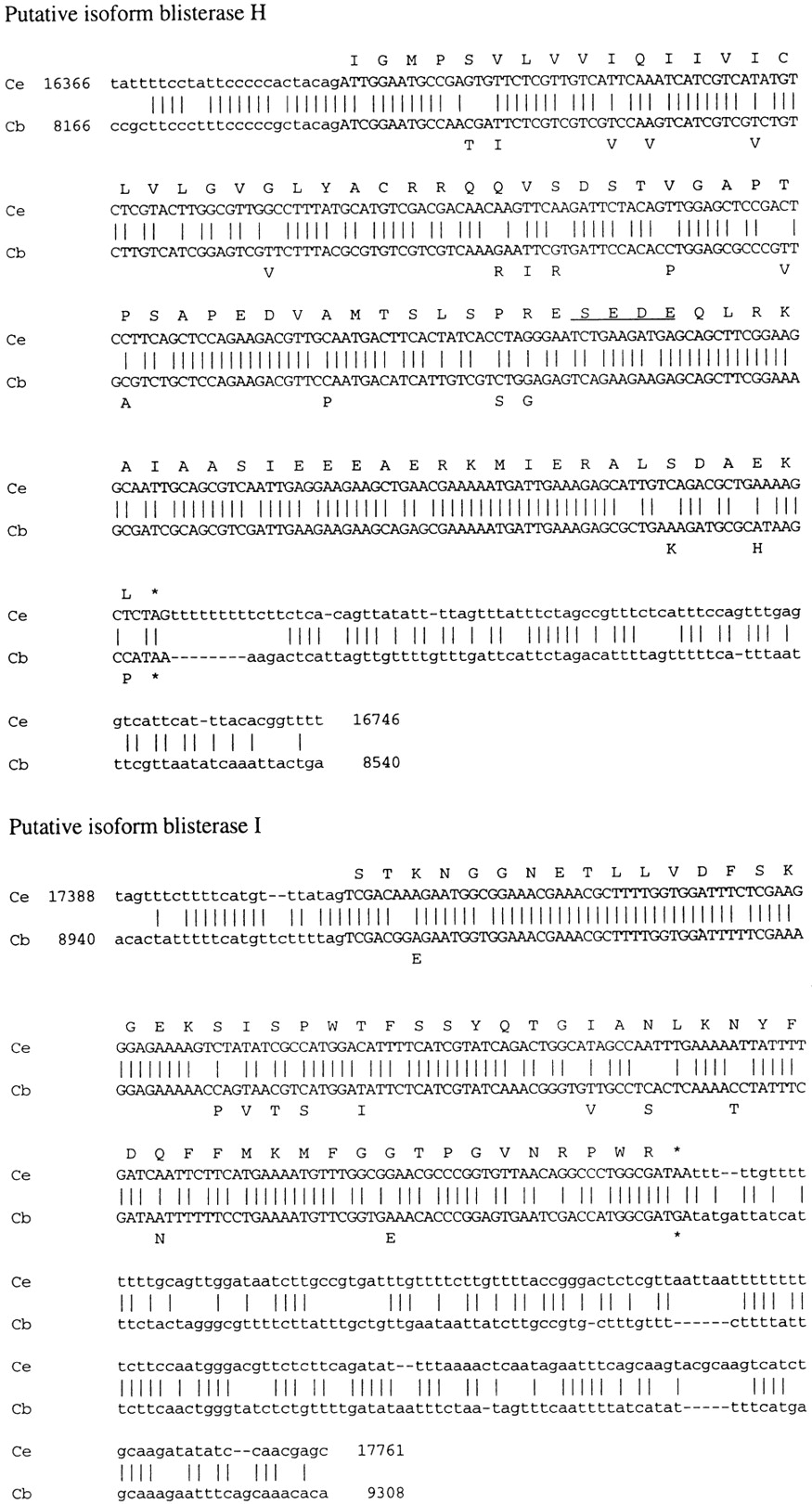

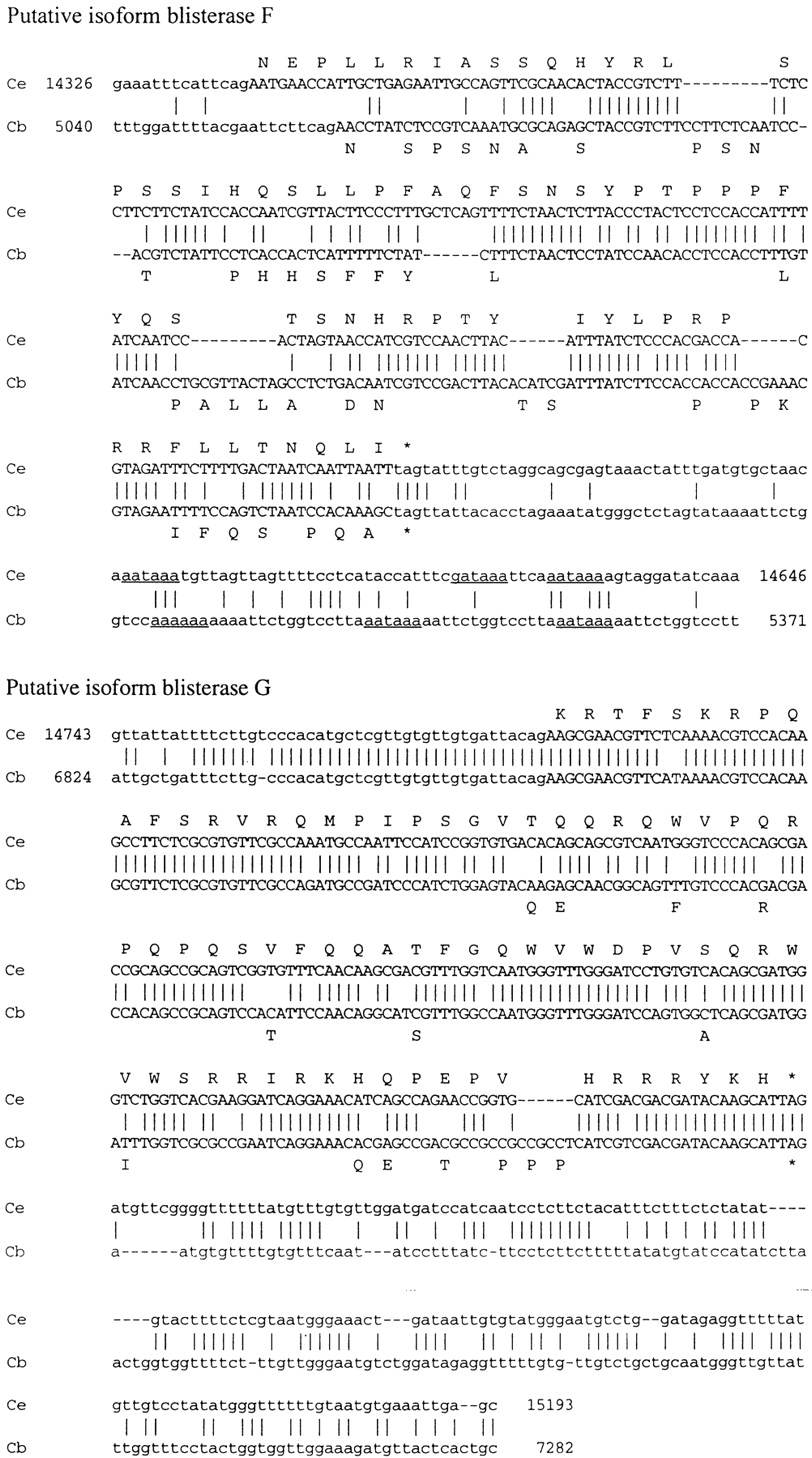

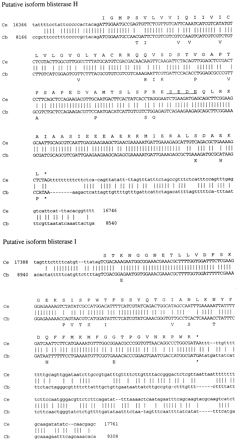

Figure 7.
Alignment of conserved sequences that are predicted to encode the carboxyl termini of additional bli-4 isoforms. The predicted unique exons have been designated bli-4F, bli-4G,bli-4H, and bli-4I. Exons are shown in uppercase; the predicted translation is shown in one-letter code above the middle base of each codon for the C. elegans sequence. Only amino acids that are not conserved in the predicted C. briggsaetranslation are shown below the corresponding nucleotide sequence. Sequences that may comprise a casein kinase II phosphorylation site in exon H have been underlined.
