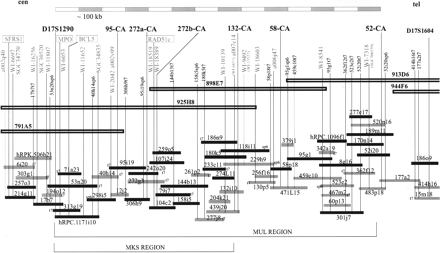

The genomic clone contig of the MKS–MUL region. The PACs are indicated by solid bars (214g11 is a P1 clone) and the BACs by gray bars. For the orientation of the clones, either SP6 or T7 end of the clones are marked. Nonchimeric YAC clones mapping to the region are shown as open bars. The polymorphic markers used for the genetic mapping are shown in boldface type on the top, whereas the ESTs and genes are marked with gray text. Three sequenced bacterial clones (by the Whitehead Institute/MIT) are also shown in the map; the sizes of the bacterial clones hRPK.506h21 (BAC), hRPC.1171i10 (PAC), and hRPC.1096f1 (PAC) are 162,083 bp, 175,120 bp, and 124,898 bp, respectively.
