Figure 2.

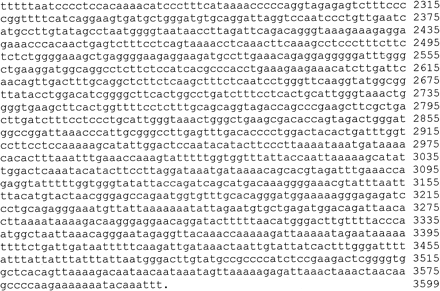

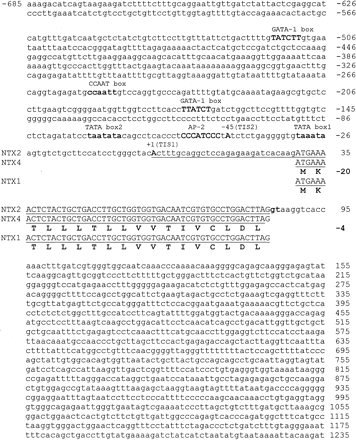

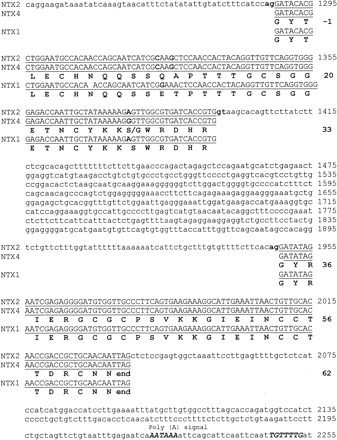

Complete nucleotide sequences of NTX genes, NTX1,NTX2, and NTX4, including the introns and 5′- and 3′-flanking regions. Only one intron sequence is included, as all three genes are identical. The exon sequences are in uppercase letters. The deduced amino acid sequences are presented as one-letter code below the codons and are numbered separately. The transcriptional elements are in uppercase letters and boldface. The important elements in the 3′ end of the NTX gene such as the AATAAA and TGTTTG sequences, are in boldface italics.
