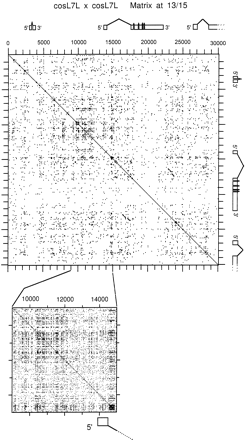

Figure 5.
A dot matrix comparison of cosmid L7L with itself showing the generally high frequency of 13/15 repeats as well as the clustered repeat upstream from the ci transcript. The whole cosmid comparison is shown at top; while an enlarged matrix of the cluster is shown at bottom in expanded view. The transcription unit positions, as described in Fig. 1, are also shown so as to permit comparison of repeat frequency in coding and noncoding regions.
