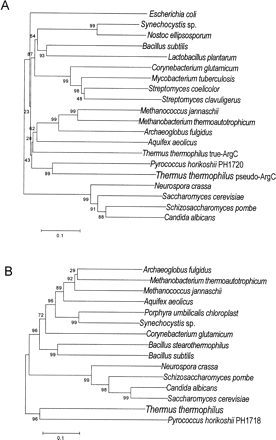

Comparison of arginine biosynthesis and Thermus lysine biosynthesis related proteins. (A) Phylogenetic relationships among the amino acid sequence encoded in the argC gene ofT. thermophilus and the related sequences. A total of 267 amino acid sites were considered without gap regions in alignment. The bar indicates 10% difference of amino acid sequence. The DAD accession nos. used in this phylogenetic analysis are D64004-19-1, U48355-1-1,X52834-1-1, X99978-2-1, AL031541-2-1, M83659-1-1, Z85982-15-1,AF049897-1-1, M21446-1-1, AE000861-7-1, U67552-4-1, AE000961-28-1,AE000761-6-1, Y10525-2-1, AP000007-35-1, Z69727-9-1, X98880-1-1,U18813-19-1, and L27746-1-1. (B) Phylogenetic relationships among the amino acid sequence encoded in the argB gene ofT. thermophilus and the related sequences. A total of 157 amino acid sites were considered without gap regions in alignment. The DAD accession nos. used in this phylogenetic analysis areAE001016-12-1, AE000806-5-1, U67464-11-1, AE000771-3-1, M94625-2-1,D90905-74-1, X86157-3-1, L06036-3-1, Z26919-3-1, X98880-1-1,U18813-19-1, L27746-1-1, Z69727-9-1, and AP000007-33-1.
