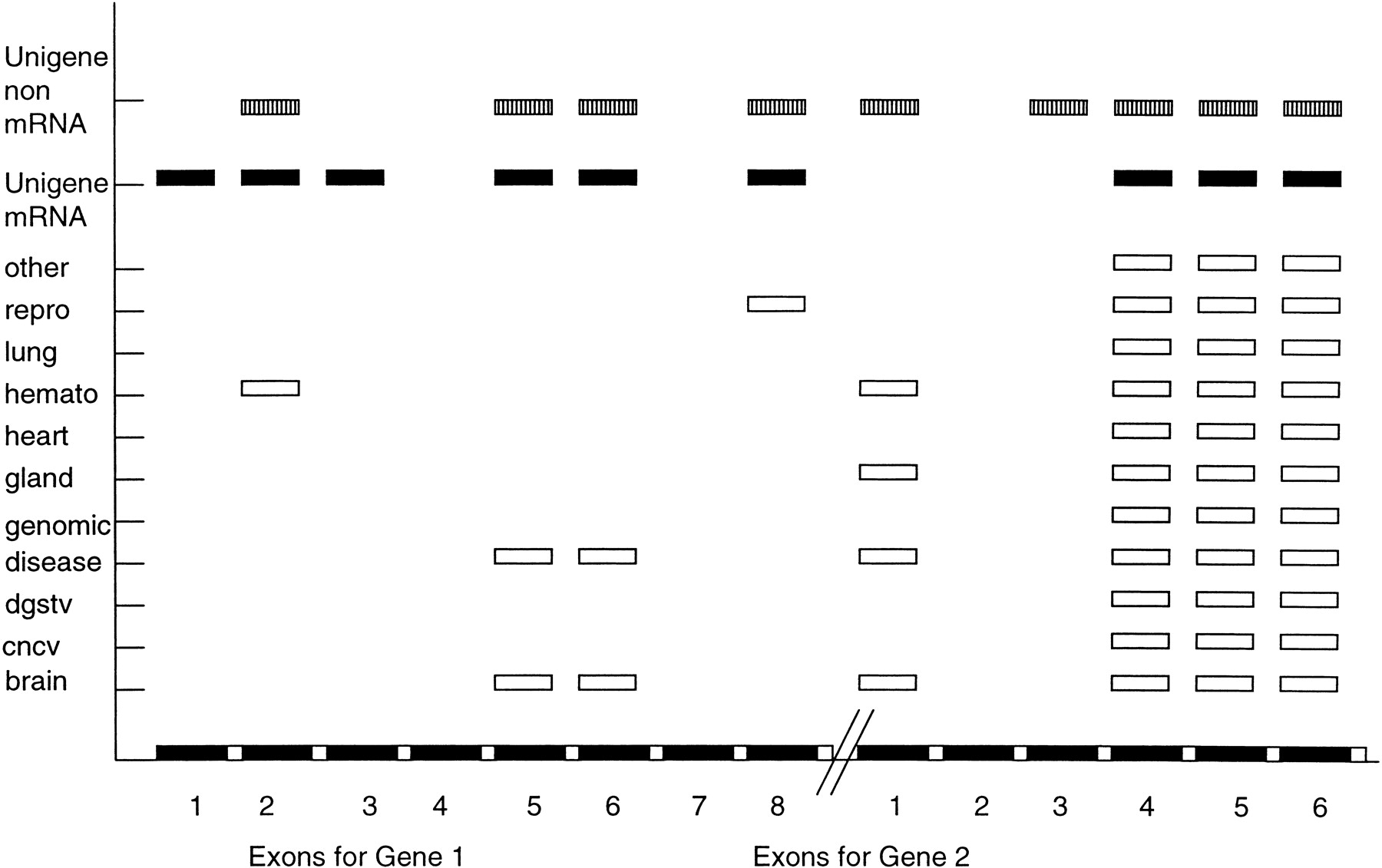

Schematic representation of the coverage (percent of exon length matched above 96% contiguous similarity) of STACK and UniGene clusters across the exonic regions of gene 1 (U2 small nuclear ribonucleoprotein auxilary factor U2AF1-RS2) and gene 2 (Clathrin-coated assembly protein AP19 AC004876) contained in genomic clone AC004106. UniGene mRNA: UniGene cluster containing mRNA; UniGene non-mRNA: UniGene cluster containing no mRNA. Description of tissues as outlined in Fig. 2. STACK clusters (open reactangles), UniGene mRNA-containing clusters (solid rectangles) and UniGene non-mRNA-containing clusters (shaded rectangles) that show similarity to the various exons of gene 1 and 2 (horizontal axis) are displayed graphically. Number of nucleotides in each exon gene 1: 1(84), 2(109), 3(57), 4(39), 5(119), 6(214), 7(1730), and 8(475), respectively. Exons were extracted from the feature table of the GenBank entry AC004106 as 8601..8684, 12419..12527, 12842..12898, 16964..17002, 17931..18049, 24408..24621, 27318..29047, and 31462..31988. Gene 2: 1(464), 2(253), 3(81), 4(136), 5(111), and 6(157), respectively. Exons were extracted from the feature table of the GenBank entry AC004106 as 35640..36103, 40047..40299, 42175..42255, 54110..54245, 54632..54742, and 61077..61233.
