Detecting and Analyzing DNA Sequencing Errors: Toward a Higher Quality of the Bacillus subtilis Genome Sequence

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

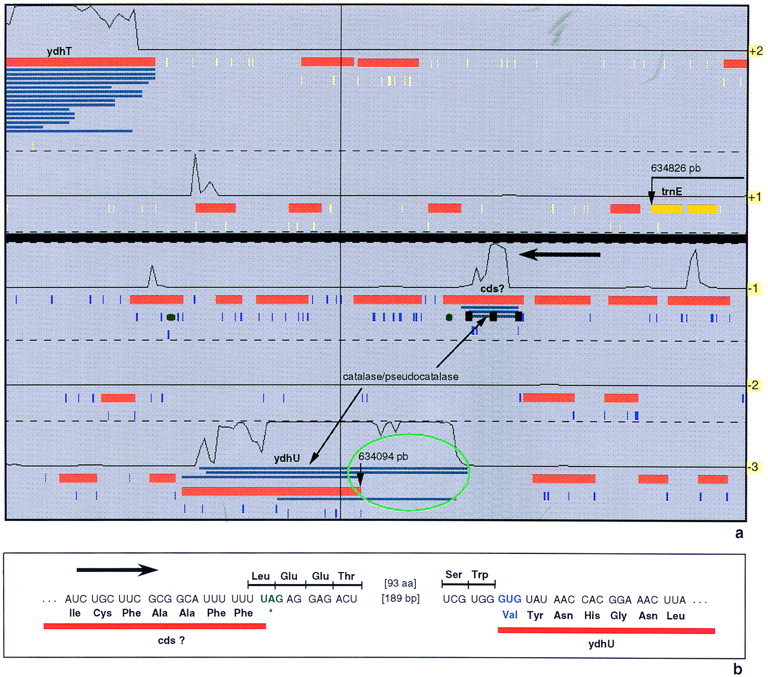

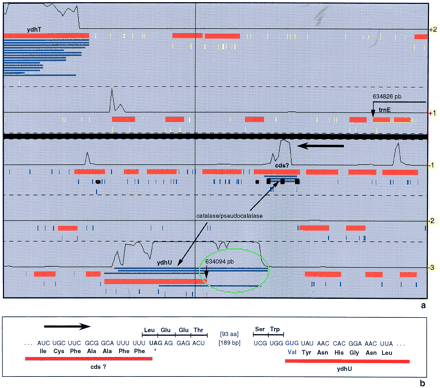

Figure 3.
Figure 3.

Example of an authentic frameshift corresponding to a putative programmed frameshift. (a) Representation of theydhT-trnE B. subtilis region with the Imagene Results Manager. (b) DNA sequence corresponding to the end of the cds? putative gene and the beginning of the ydhU gene. A −1 frameshifting at the UUU UUU slippery sequence will lead to the expression of a gene whose product exhibits some similarities with catalase.

This Article

  1. Genome Res. 9: 1116-1127
