Identification of Target Sites of the α2–Mcm1 Repressor Complex in the Yeast Genome

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

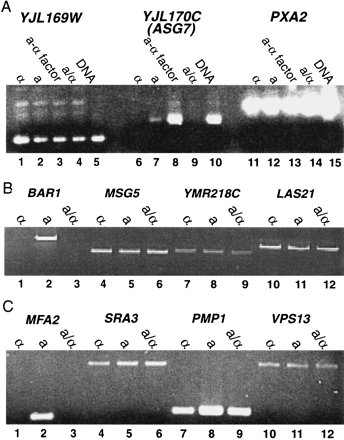

Figure 1.
Figure 1.

(A) Expression of potential a-specific genes in haploid and diploid cells. The expression of YJL169W (lanes15), YJL170C (lanes610), and PXA2 (lanes1115) were assayed using RT–PCR. RNA prepared from α (lanes 1,6,11), a (lanes2,7,12), a induced with α factor (lanes 3,8,13), and a/α diploid (lanes 4,9,14) strains was used as the template with primers specific for each ORF. Genomic DNA was used as the template to serve as controls for the PCR reactions and the size of the expected fragments (lanes 5,10,15). (B) Expression of BAR1 (lanes13), MSG5 (lanes 46),YMR218C (lanes 79), and LAS21(lanes 1012) in α (lanes1,4,7,10), a (lanes 2,5,8,11), and a/α diploid (lanes 3,6,9,12) strains by RT–PCR. (C) expression of genes by RT–PCR that show cell-type-specific expression by microarray assay. MFA1 (lanes13), SRA3 (lanes 46),PMP1 (lanes 79), and VPS13 (lanes1012) in α (lanes 1,4,7,10), a (lanes2,5,8,11), and a/α diploid (lanes 3,6,9,12).
