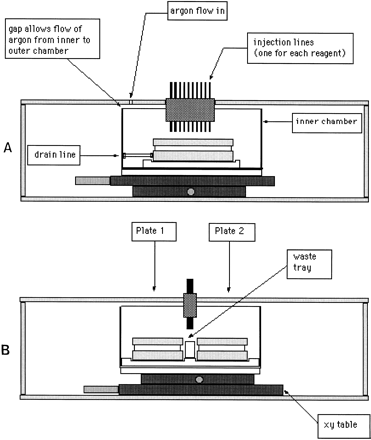

Figure 2.
(A) Synthesis chamber schematic; (B) injection head schematic. Inside the reaction chamber are placed 96-well plates, mounted in vacuum chucks. The plates are moved around underneath the injection lines to allow introduction of each reagent into the wells at appropriate times in the synthesis cycle. Reagents are drained from the plates through the drain line (see also Fig. 3).
