EbEST: An Automated Tool Using Expressed Sequence Tags to Delineate Gene Structure

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

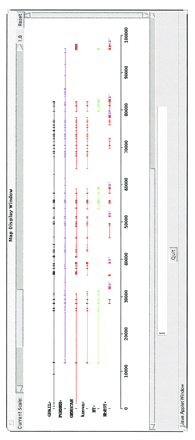

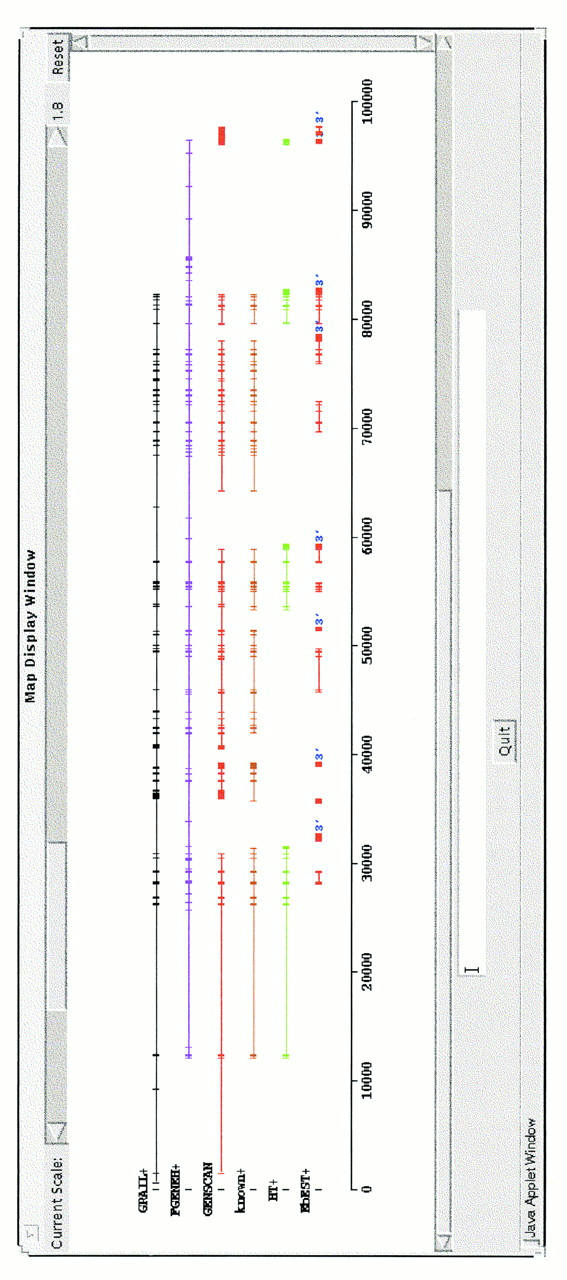

Figure 2.
