Figure 2.

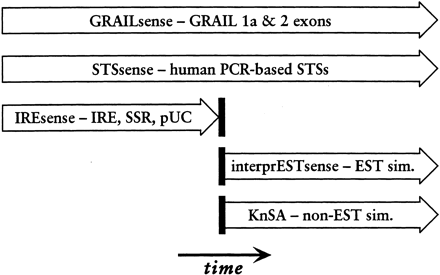

CARTA sensors. The diagram shows the sensors currently active in the CARTA prototype. The horizontal axis represents elapsed time, with the far left being the time at which annotation of a sequence is started. Each sensor may be run as part of an annotation strategy at any time within the corresponding open bar in the diagram. Overlaps between bars show where sensors may be run in parallel; functional dependencies appear as bars that do not overlap.
