Michael Centola; Xiaoguang Chen; Raman Sood; Zuoming Deng; Ivona Aksentijevich; Trevor Blake; Darrell O. Ricke; Xiang Chen; Geryl Wood; Nurit Zaks; Neil Richards; David Krizman; Elizabeth Mansfield; Sinoula Apostolou; Jingmei Liu; Neta Shafran; Anil Vedula; Melanie Hamon; Andrea Cercek; Tanaz Kahan; Deborah Gumucio; David F. Callen; Robert I. Richards; Robert K. Moyzis; Norman A. Doggett; Francis S. Collins; P. Paul Liu; Nathan Fischel-Ghodsian; Daniel L. Kastner

Construction of an ∼700-kb Transcript Map Around the Familial Mediterranean Fever Locus on Human Chromosome 16p13.3

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

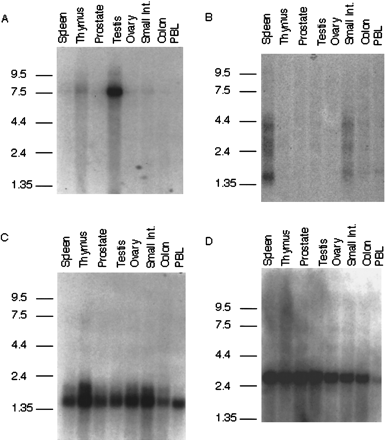

Figure 2.

Northern blot analysis of four transcripts from the FMF interval. Autoradiograms of human multitissue Northern blots probed with [³²P]dCTP-labeled cDNA are shown. Blots were probed with the following cDNAs: (A) clone CR17-26; (B) V9; (C) CR18-9; (D) ZNF174.
