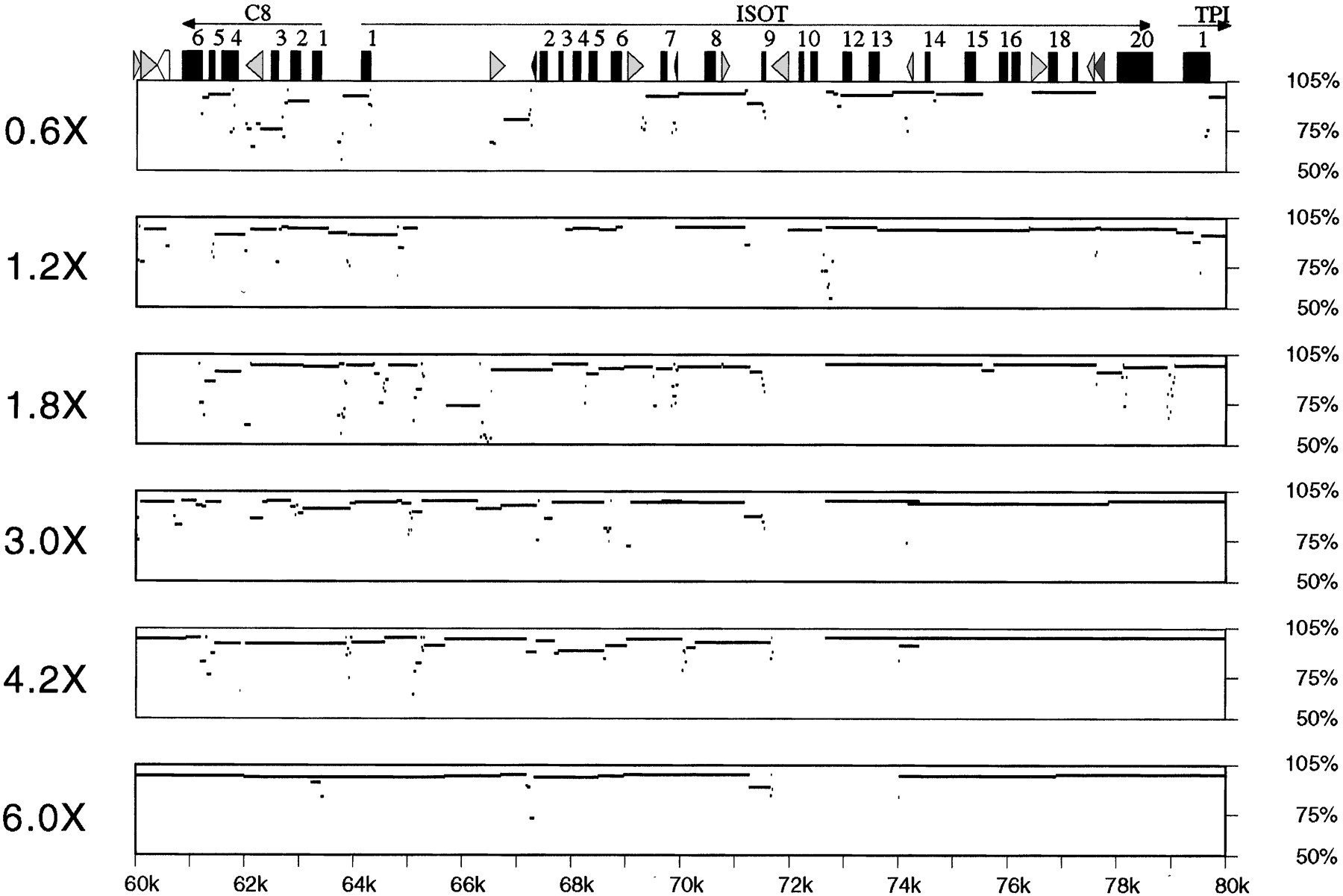

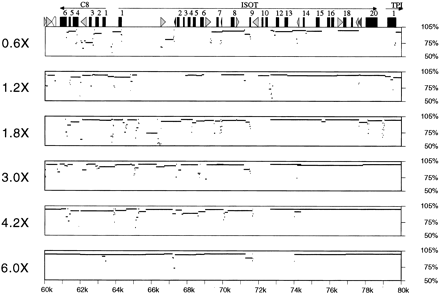

Figure 4.
Alignment of contigs generated from low-redundancy sequencing to the known sequence. The lower-redundancy consensus sequences were compared to the completed sequence that was submitted to GenBank. The distance from the start of the project is indicated at the bottom, and the percent identity is indicated at left. Exons (numbered solid boxes) and repeats [SINEs other than mammalian interspersed repeats (MIRs) are light gray triangles pointing toward the A-rich 3′ end; LINE1s are open triangles; MIR and LINE2 elements are solid triangles] are indicated at the top.
