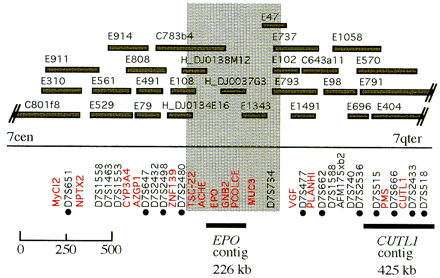

Figure 1.
Location of the EPO and CUTL1 contigs in the 7q22 region. The position of representative genetic markers [(•) genes (in red) and STSs (unmarked)] with respect to genomic clones in the region are shown. The clones preceded by C represent CEPH–Généthon mega-YACs. Clones preceded by an E are from the HSC7E chromosome 7-specific YAC library. Three PAC clones are also shown (preceded by H_DJ). Information on additional markers represented on these genomic clones is available on the World Wide Web at http://www.genet.sickkids.on.ca/chromosome7/. The shaded area represents an interval within the contig where the orientation of the markers is still not confirmed.
