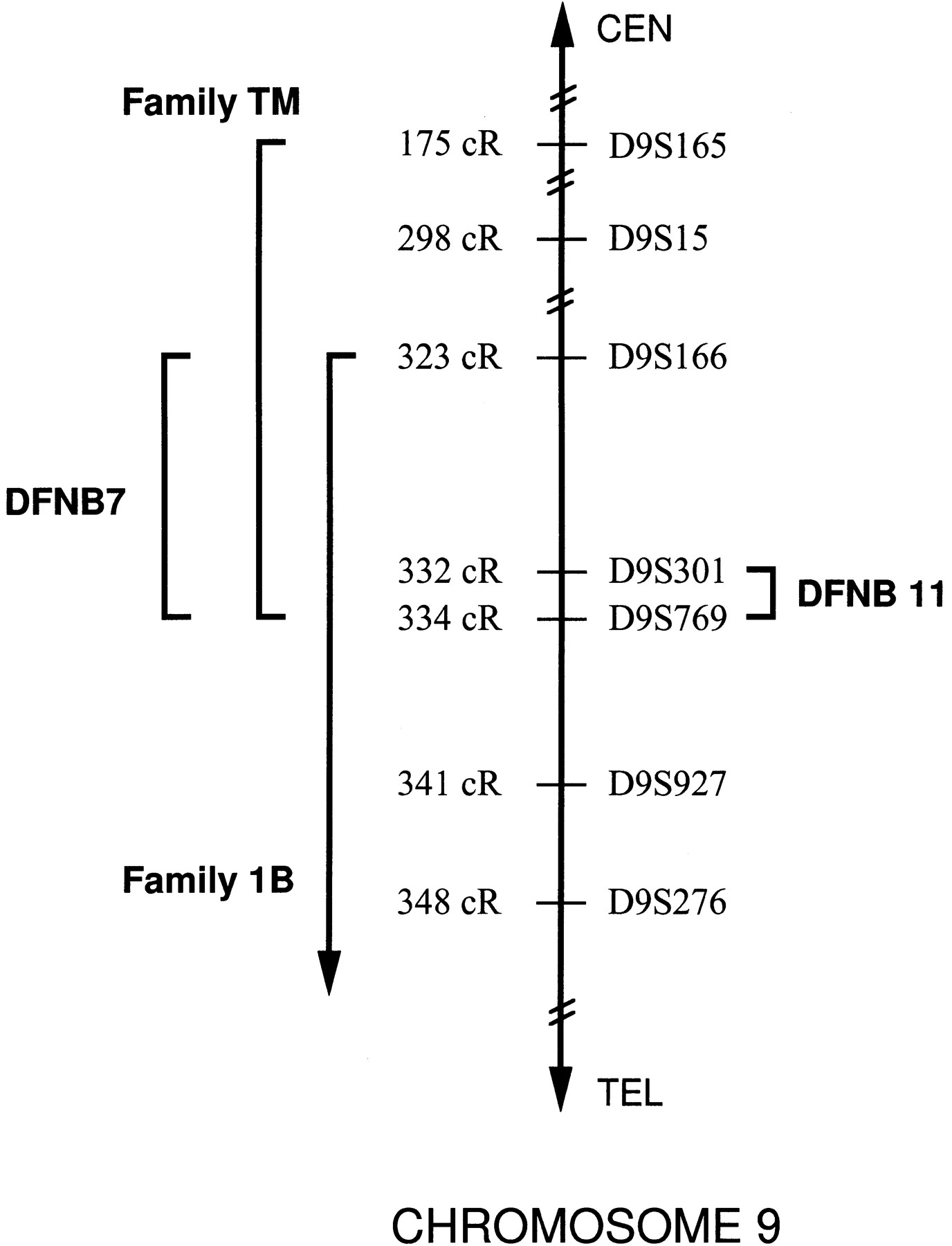

Figure 1.
Radiation hybrid map of the DFNB7/11 region. Markers in theDFNB7/11 region were placed on the Whitehead Institute/MIT Center for Genome Research’s Chromosome 9 Framework Map at lod>15. CentiRay (cR) values represent total distance from the top of the Chromosome 9 Framework map. The DFNB7 interval is defined by the overlapping portion of the disease intervals of the Indian families TM (this report) and 1B (Jain et al. 1995). The DFNB11interval is based on data from Israeli Bedouin Kindreds 1 and 2 (Scott et al. 1996). The region between D9S301 and D9S769 is common to both the DFNB7 and DFNB11 intervals.
