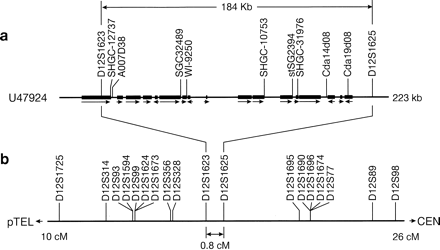

Alignment of the sequence corresponding to GenBank entry U47924 to the Généthon map. (a) A schematic representation of the 223-kb sequence is shown, with solid boxes showing the extent of the coding sequences for each gene (for clarity, the exon/intron structure is not indicated) and arrows showing the direction of transcription. One partial gene with its 3′ UTR, but no coding sequence, spanning the right boundary of the sequence, was not shown. In addition, a pseudogene and an snRNA gene documented in the region are not shown. STSs identified by e-PCR analysis with microsatellite and gene-based markers are indicated. Eight of the nine gene-based markers were found within the 3′ UTR, which is consistent with the strategy that was used in their development. (b) A portion of the Généthon genetic map of chromosome 12 (from 10 to 26 cM) is reproduced, with lines drawn to show how the sequence (GenBank entry U47924) can be aligned to it based on the presence of markers D12S1623 (at 17.1 cM) and D12S1625 (at 17.9 cM).
