Single-Nucleotide Polymorphism Identification Assays Using a Thermostable DNA Polymerase and Delayed Extraction MALDI-TOF Mass Spectrometry

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

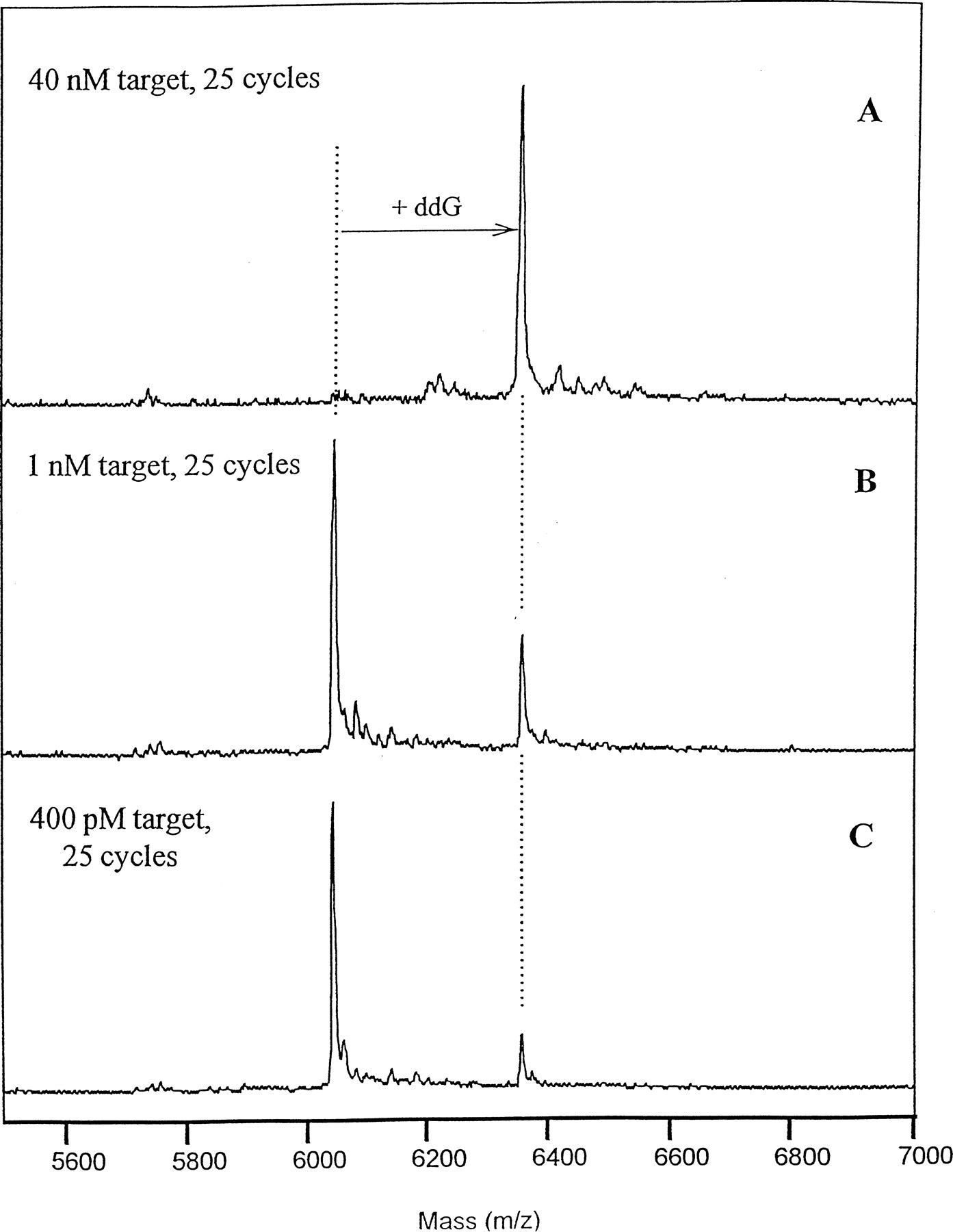

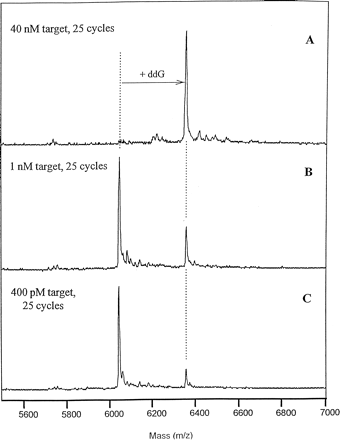

Figure 3.
Figure 3.

Identification of polymorphism at low level of target DNA. The primer extension assay was conducted with ThermoSequenase as described in Methods in the presence of 10 μm ddNTPs. (A) Forty nanomolar target sequence; (B) 1 nm target sequence; (C) 400 pm target sequence.
