Single-Nucleotide Polymorphism Identification Assays Using a Thermostable DNA Polymerase and Delayed Extraction MALDI-TOF Mass Spectrometry

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

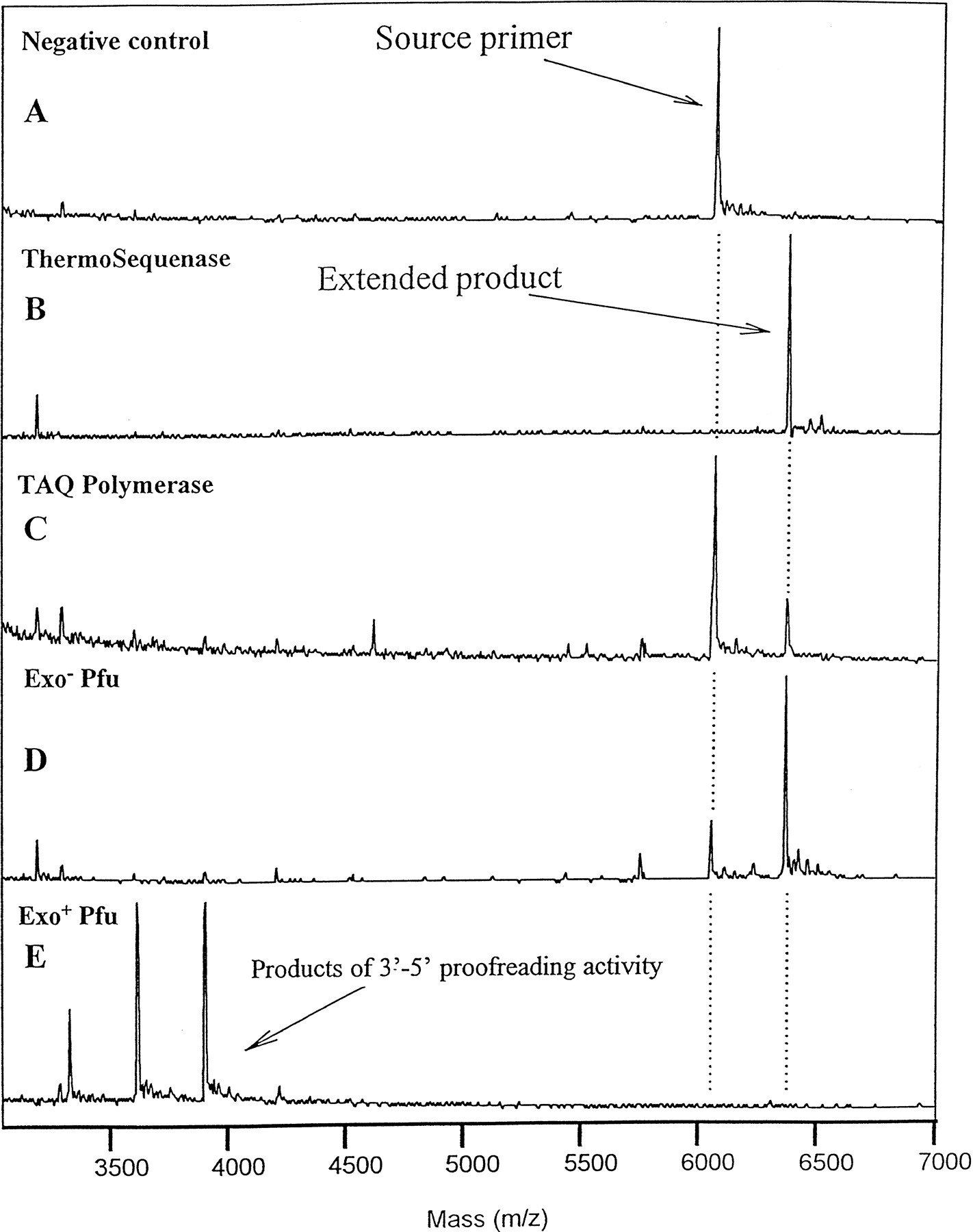

Figure 2.
Figure 2.

Comparison of enzymes in primer extension. Primer extension product was produced in 25 thermal cycles. (A) negative enzyme control; (B) ThermoSequenase; (C) AmpiTaq DNA polymerase; (D) Exo− Pfu DNA polymerase; (E) exo+ Pfu DNA polymerase. Conditions were as described in Methods and in Fig. 1.
