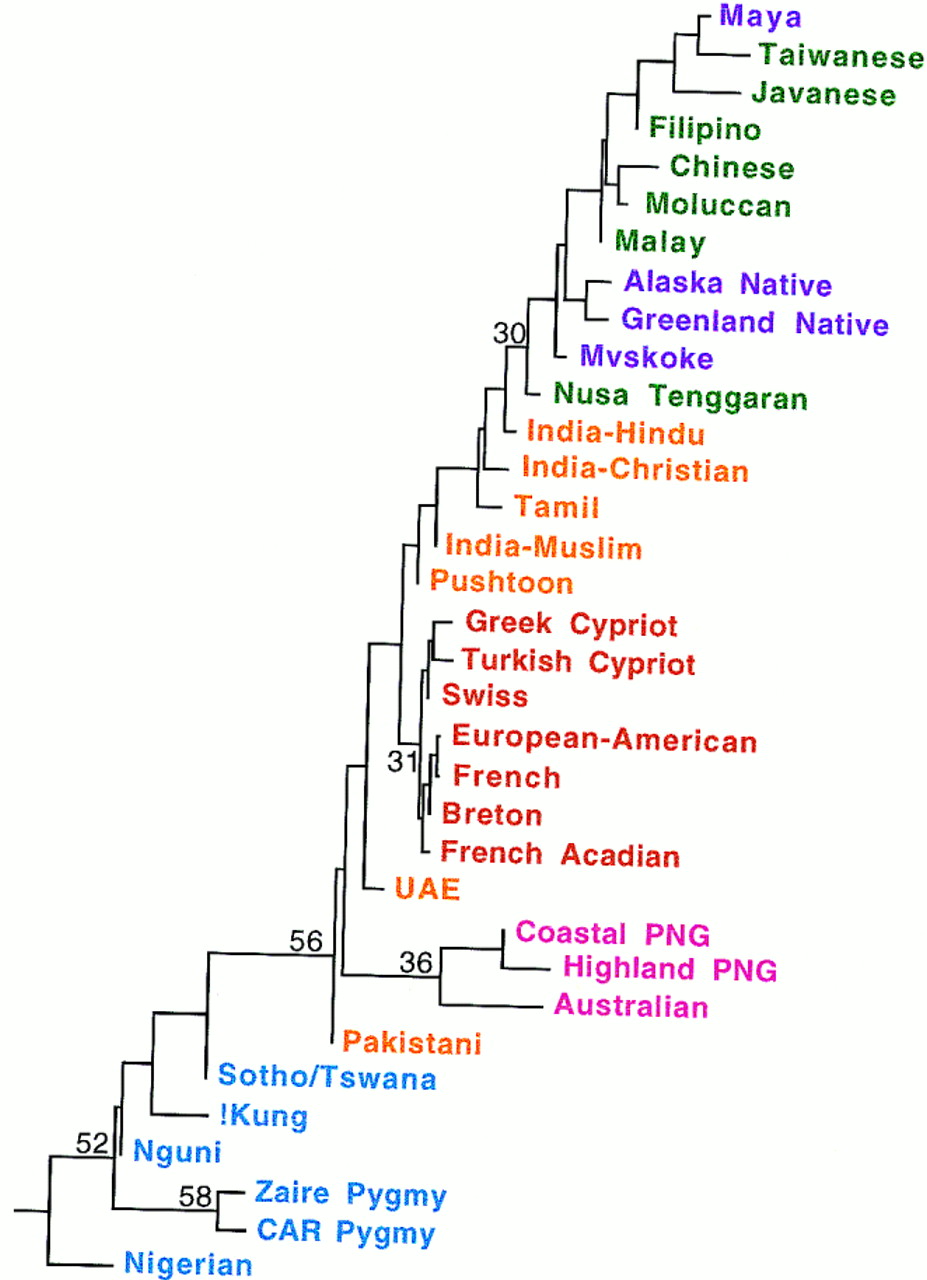

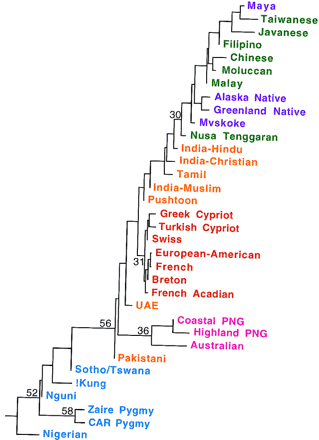

Figure 2.
Neighbor-joining tree of population relationships. This tree is rooted where a hypothetical ancestral population—in which the frequency of the Alu element at each of the eight loci is set to 0.0—attaches to the unrooted network. Numbers indicate (in per cent) the fraction of 500 bootstrap replicates that supported a particular grouping.
