When the Chips are Down

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 1.
Figure 1.

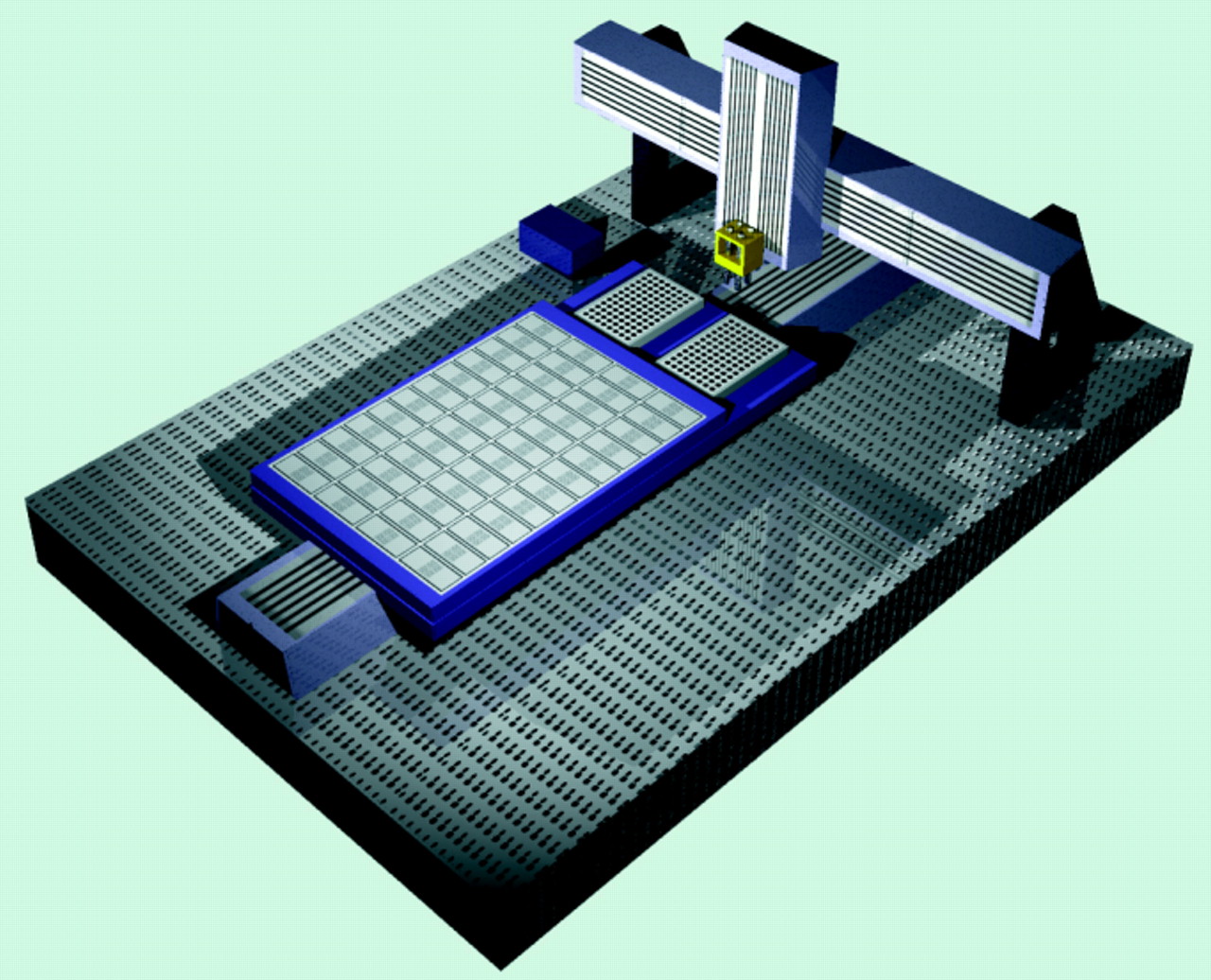

Schematic of the arrayer designed in Patrick Brown’s laboratory. Shown is the basic system. Three servo-motor powered linear rail tables (Daedal Series 500000) are mounted on an anti-vibration table (Newport). Inside the PC, a Galil DMC-630 controller card (Galil Motion Control, Sunnyvale, CA) controls the system via communication through a 60 pin ribbon cable to the Galil power supply and servo driver.
