The Largest Subunit of Human RNA Polymerase III Is Closely Related to the Largest Subunit of Yeast and Trypanosome RNA Polymerase III

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

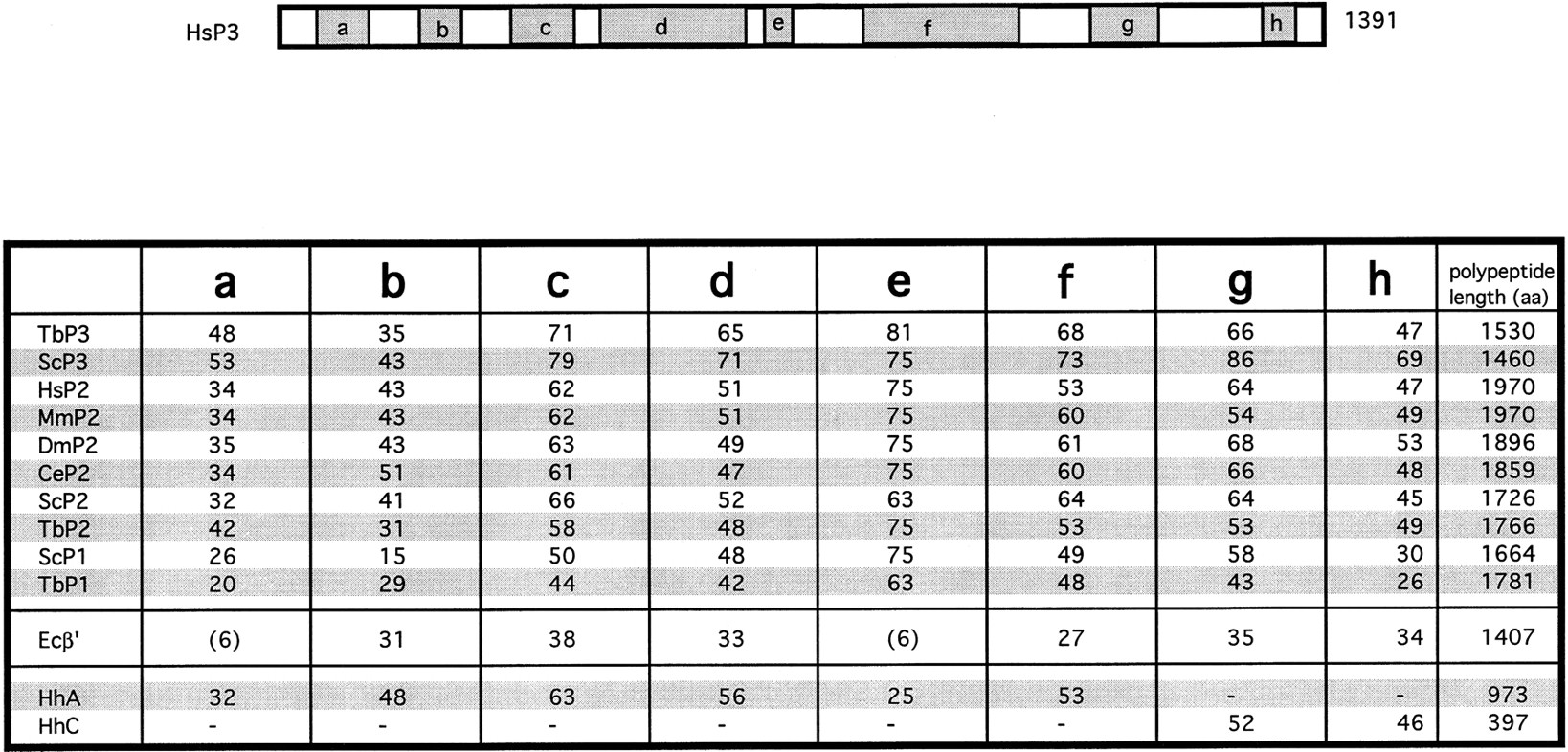

Figure 6.
Figure 6.

The a–h regions are highly conserved among RNA polymerases. The percentages of identical amino acids between the human RNA polymerase III sequence and various eukaryotic largest subunits, the E. coli β′ subunit, and the H. halobium A and C polypeptides within the conserved regions a–hare indicated. The numbers on the right indicate the total length of the polypeptide. P1, P2, and P3 refer to RNA polymerases I, II, and III, respectively.
