The Largest Subunit of Human RNA Polymerase III Is Closely Related to the Largest Subunit of Yeast and Trypanosome RNA Polymerase III

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

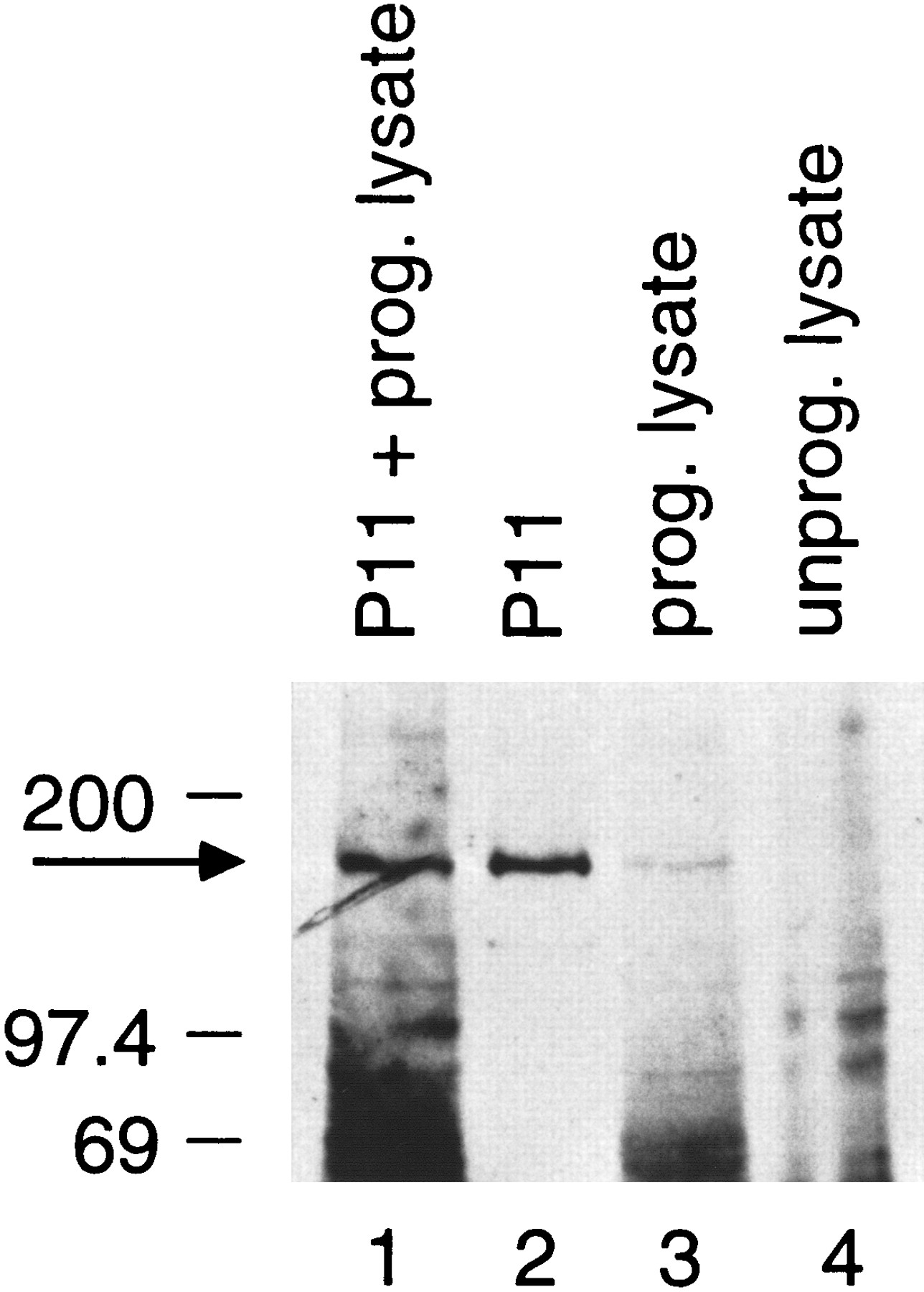

Figure 3.
Figure 3.

The polypeptide encoded by the cloned cDNA comigrates with endogenous hRPC155. The immunoblot was probed with the α-CSH499 antibody. (Lane 1) Mixture of 5 μl of P11 fraction (see Methods) and 5 μl of programmed reticulocyte lysate; (lane 2) 10 μl of P11 fraction; (lanes 3, 4) 5 μl of programmed and nonprogrammed reticulocyte lysate, respectively. After decay of the chemiluminescent signal, the membrane was exposed to a second film for visualization of the l[35S] methionine-labeled in vitro-translated proteins. The outline of the membrane, which was visible on both film exposures, was then used as a guide to overlay the two films. The 35S signals present in lanes 1 and3 (but not in lanes 2 and 4) could be superimposed exactly onto the chemiluminescent signals, as expected.

This Article

  1. Genome Res. 7: 1006-1019
