Diverse evolutionary trajectories of mitocoding DNA in mammalian and avian nuclear genomes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 6.
Figure 6.

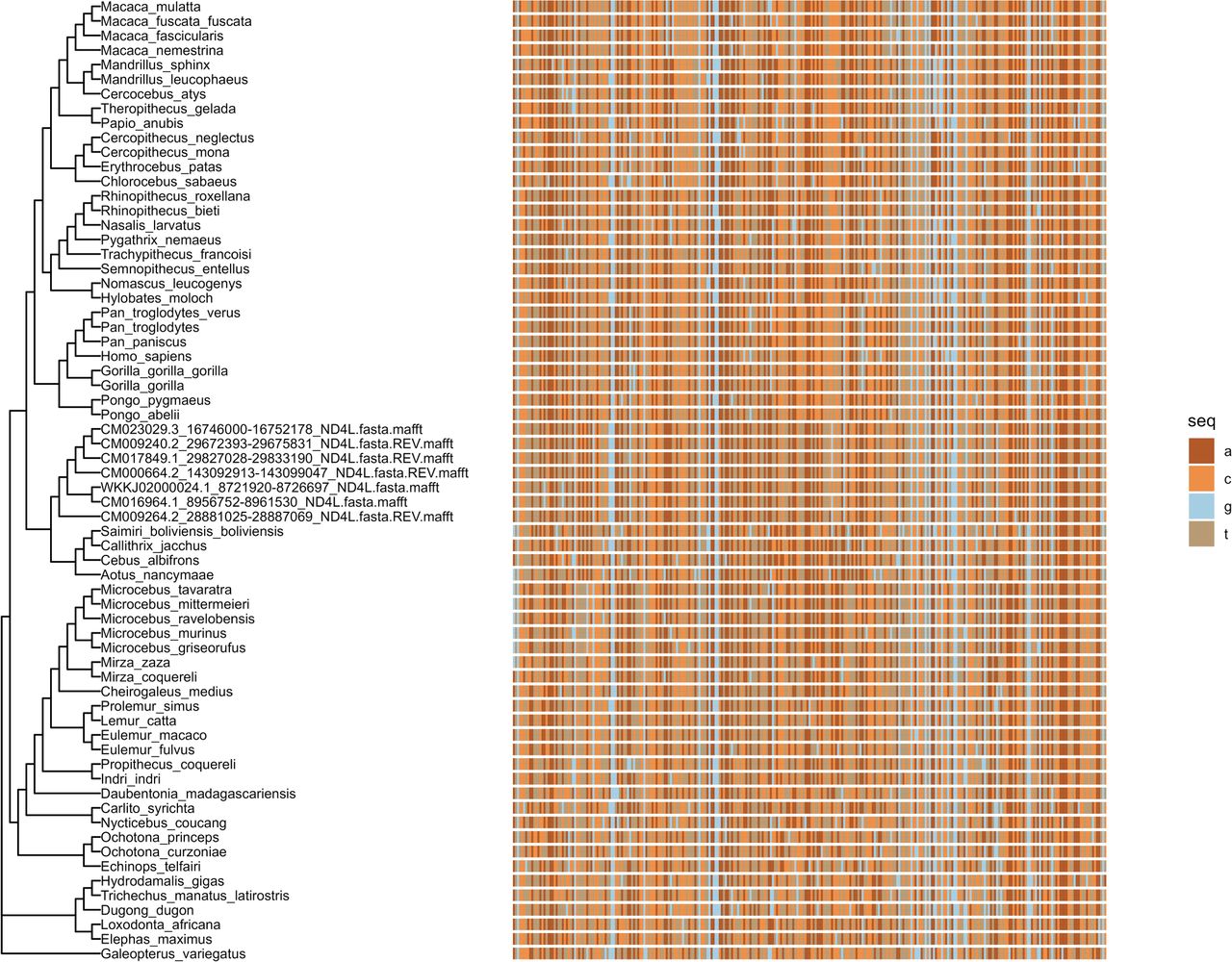

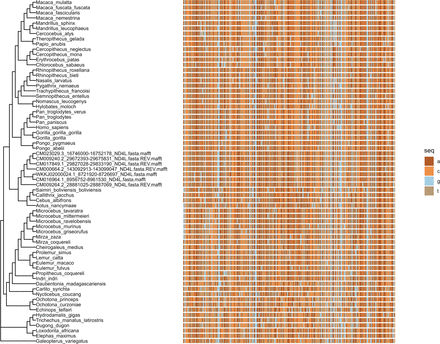

Phylogenetic tree and sequences used for codeml analysis of a NUMT cluster that contains dcNUMTs of seven ape species along with mitochondrial sequences of 59 (sub)species. The NUMT gene with an intact reading frame is MT-ND4L. Evolutionary pressures were estimated with codeml using the mitochondrial genetic code. The coding sequence is shown in color using the four-letter-DNA notation illustrating no pinpointed divergence of the NUMT sequences.

This Article

  1. Published in Advance March 31, 2025, doi: 10.1101/gr.279428.124 Genome Res. 35: 1313-1324
