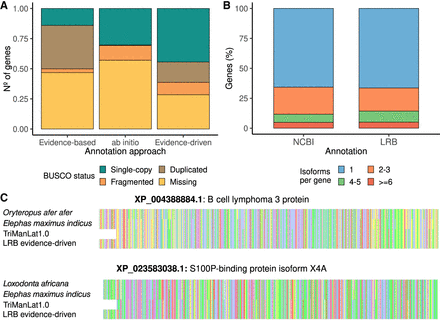

Figure 4.
LRB annotation of the Florida manatee genome. (A) Assessing the BUSCO completeness of the Florida manatee's genome annotation with the different approaches. (B) Number of isoforms per gene in the NCBI annotation (left) and the LRB annotation (right). (C) Multiple sequence alignments of proteins of two manatee-related species, the sequence identified in the new annotation, and the manatee sequence available at NCBI. At the top, B cell lymphoma 3 protein is shown. At the bottom, S100P-binding protein isoform X4 is shown.
