Figure 3.

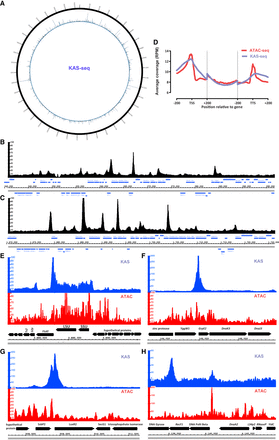

The ssDNA and active transcription landscape in Bacteriovorax. (A) Circos plot of the global KAS-seq signal distribution along the Bacteriovorax sp. ICPB 3264 [H-I A3.12] chromosome. (B,C) Local KAS-seq signal distribution in Bacteriovorax shows strongly localized peaks associated with promoter regions. (D) Metaplot of KAS-seq and ATAC-seq signal distribution along Bacteriovorax genes. (E) KAS-seq and ATAC-seq profiles around the ribosomal RNA locus of Bacteriovorax. (F) KAS-seq and ATAC-seq profiles around the heat shock protein GrpE2 gene. (G) KAS-seq and ATAC-seq profiles around the LuxR2 transcriptional activator gene. (H) KAS-seq and ATAC-seq profiles near the origin of replication of the Bacteriovorax chromosome.
