A spatiotemporally resolved atlas of mRNA decay in the C. elegans embryo reveals differential regulation of mRNA stability across stages and cell types

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

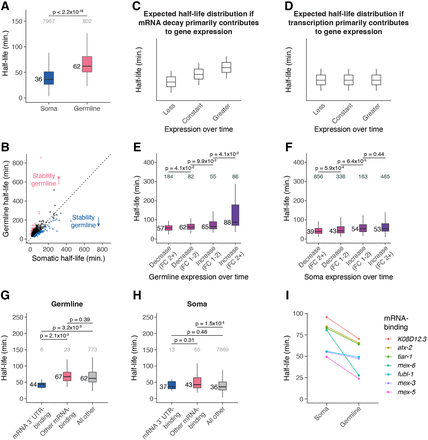

Figure 8.
Figure 8.

Differential mRNA decay occurs across germline and somatic cells in the C. elegans embryo. (A) Box plots showing the cell type–specific mRNA half-life distributions of genes across the germline and soma. (B) Scatter plot comparing soma- and germline-specific mRNA half-lives to one another. Each point represents a gene. Pink points correspond to the top 10% of genes with longer mRNA decay in the germline compared with in the soma. Blue points correspond to the top 10% of genes with faster mRNA decay in the germline compared with in the soma. Dashed line is the x = y line. (C) A cartoon of box plots representing the expected mRNA half-life distribution of genes with less, constant, or greater expression over time if mRNA decay primarily contributes to gene expression. (D) A cartoon of box plots representing the expected mRNA half-life distribution of genes with less, constant, or greater expression over time if transcription primarily contributes to gene expression. (E) Box plots showing the germline-specific mRNA half-life distributions for genes that decrease or increase in expression over time in the germline from a fold-change of one to two or greater than two. (F) Box plots showing the soma-specific mRNA half-life distributions for genes that decrease or increase in expression over time in the soma from a fold-change of one to two or greater than two. (G) Box plots showing the germline-specific mRNA half-life distributions of mRNA 3′ UTR-binding genes, other mRNA-binding genes, and genes not annotated as RNA binding. (H) Box plots showing the soma-specific mRNA half-life distributions of mRNA 3′ UTR-binding genes, other mRNA-binding genes, and genes not annotated as RNA binding. (I) Plot displaying the soma- and germline-specific mRNA half-lives for mRNA-binding genes whose decay is more rapid in the germline than in the soma. Numbers to the left of the box plots are median half-lives within each group. Numbers above the box plots are the number of genes with half-lives >150 min (A,G,H) or 325 min (E,F) within each group. The P-value comparing median half-lives was calculated using the Wilcoxon rank-sum test.
