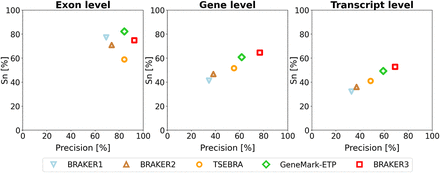

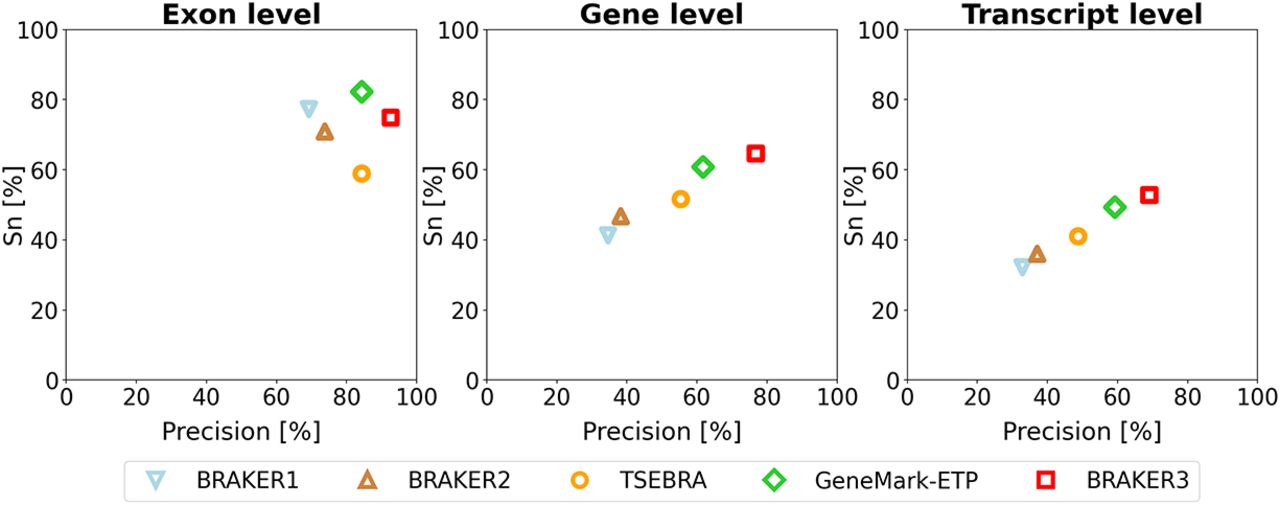

Figure 2.
Average precision and sensitivity of gene predictions made by BRAKER1, BRAKER2, TSEBRA, GeneMark-ETP, and BRAKER3 for the genomes of 11 different species (listed in Supplemental Table S1). Inputs were the genomic sequences, short-read RNA-seq libraries, and protein databases (order excluded).
