Extreme genome scrambling in marine planktonic Oikopleura dioica cryptic species

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

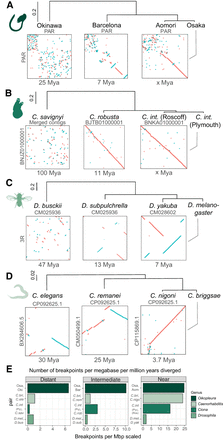

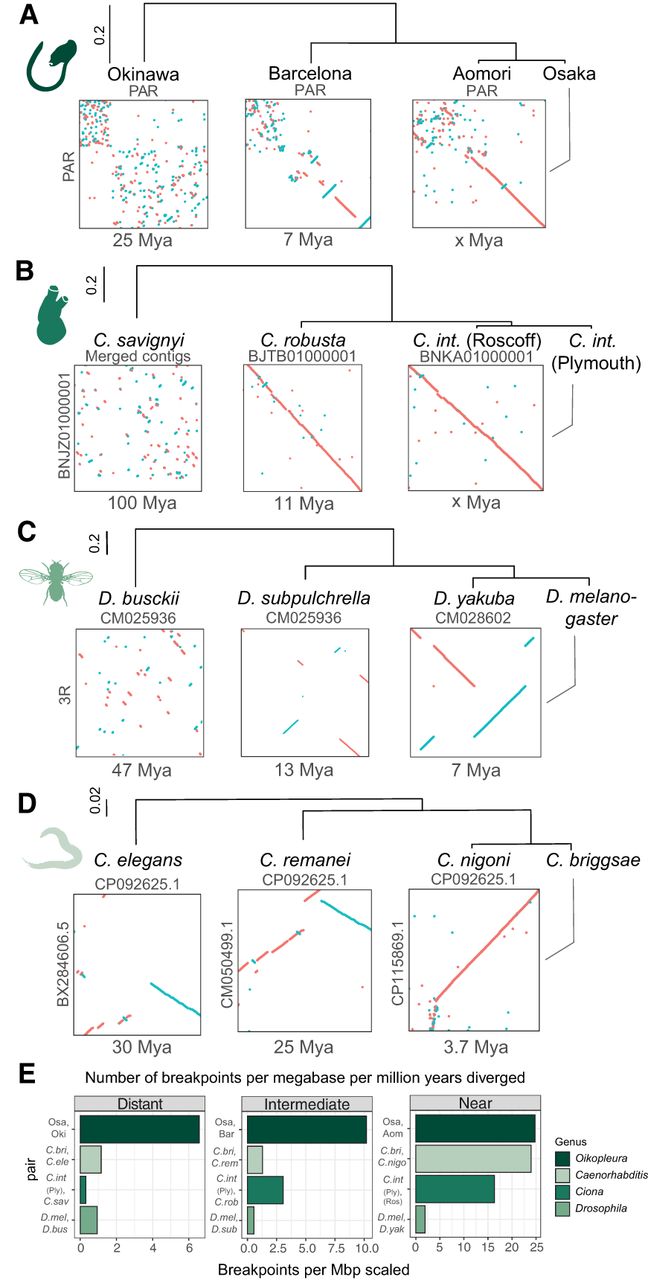

Figure 7.
Figure 7.

Genome scrambling in 10 × 10-Mbp regions for pairs of genomes in O. dioica (A), Ciona (B), Drosophila (C), and Caenorhabditis (D). Scaffold names are indicated in gray. (E) The number of breakpoint regions per megabase aligned per million years diverged for different animal clades.

This Article

  1. Published in Advance April 15, 2024, doi: 10.1101/gr.278295.123 Genome Res. 34: 426-440
