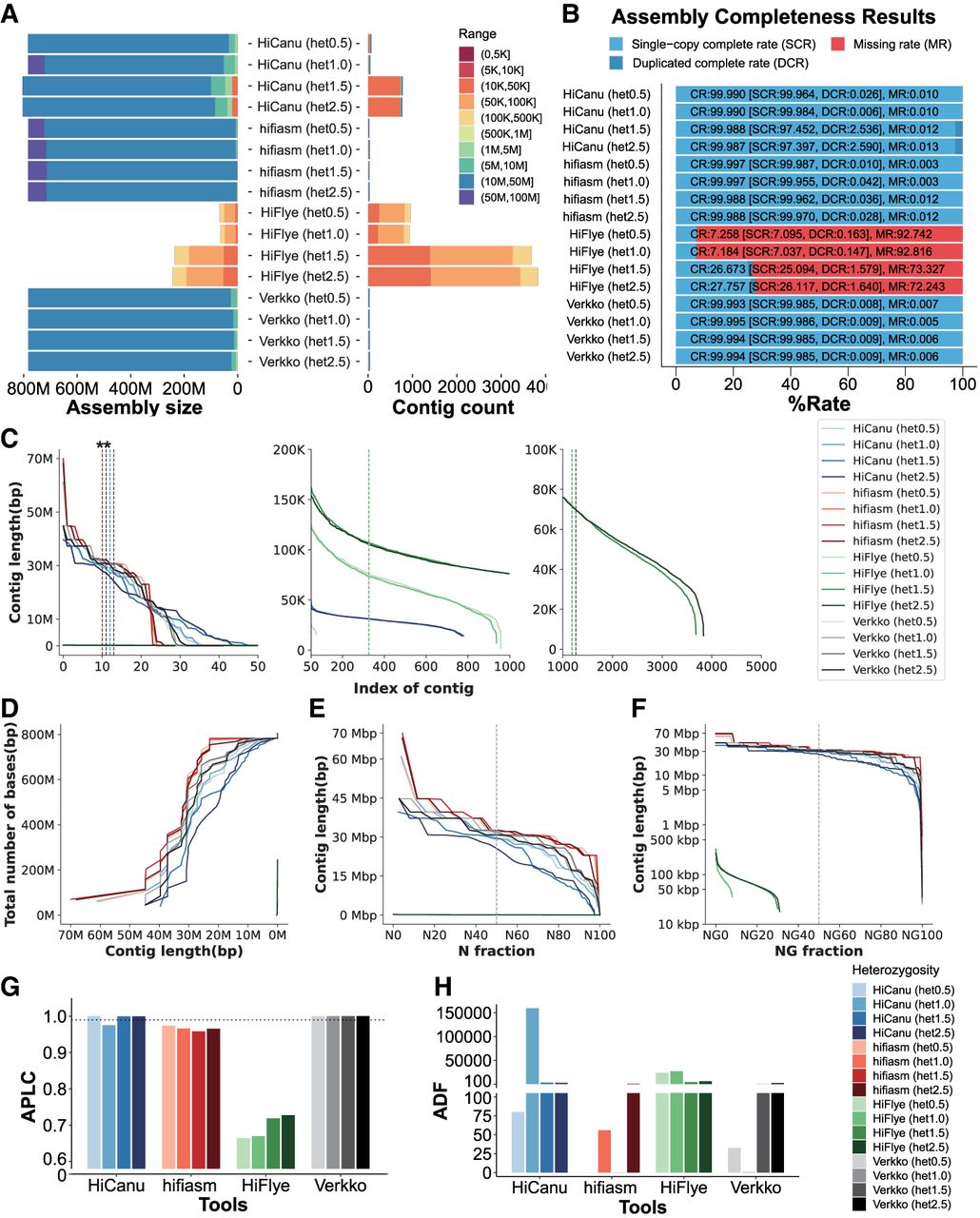

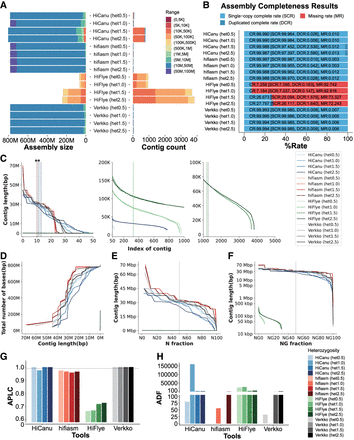

Summary of the performances of HiCanu, Verkko, hifiasm, and HiFlye on synthetic HiFi reads with heterozygosity rates of 0.5%, 1.0%, 1.5%, and 2.5%. (A) Cumulative total size of contigs (left) and the number of contigs (right) that have a size in the range encoded by the color in the legend. (B) Single complete rate, duplicated complete rate, and missing rate. (C) Sorted contig length (left: longest 50 contigs; middle: index 50–1000; right: index 1000–5000). The horizontal lines represent the corresponding N50. (*) Overlapping data. (D) Cumulative assembly size as a function of the minimum contig length allowed in the assembly. (E) Nx length (the dashed line denotes the N50). (F) NGx length (the dashed line denotes the NG50). (G) Average proportion of largest category (APLC); the horizontal dashed line is APLC = 0.99. (H) Average distance difference (ADF).
