Preferential formation of Z-RNA over intercalated motifs in long noncoding RNA

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

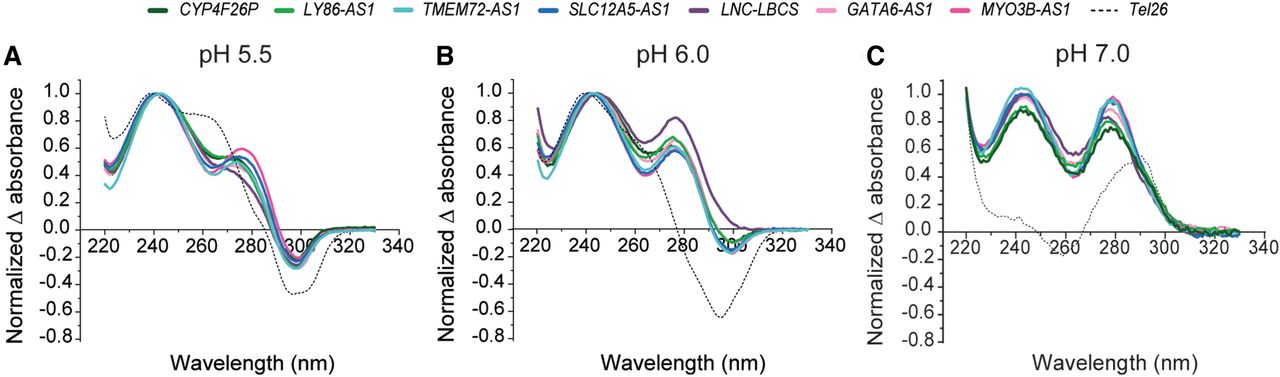

Figure 4.
Figure 4.

TDS of C-rich (predicted iM) lncRNA oligos show pH-dependent Z-RNA secondary structure formation. TDS showing normalized difference in absorbance from 220–330 nm between unfolded (90°C) and folded (20°C) conditions in 10 mM sodium cacodylate buffer at pH 5.5 (A), pH 6.0 (B), and pH 7.0 (C). Tel26 (dashed line) shows positive control DNA iM.

This Article

  1. Published in Advance February 14, 2024, doi: 10.1101/gr.278236.123 Genome Res. 34: 217-230
