Tyrosine 1–phosphorylated RNA polymerase II transcribes PROMPTs to facilitate proximal promoter pausing and induce global transcriptional repression in response to DNA damage

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

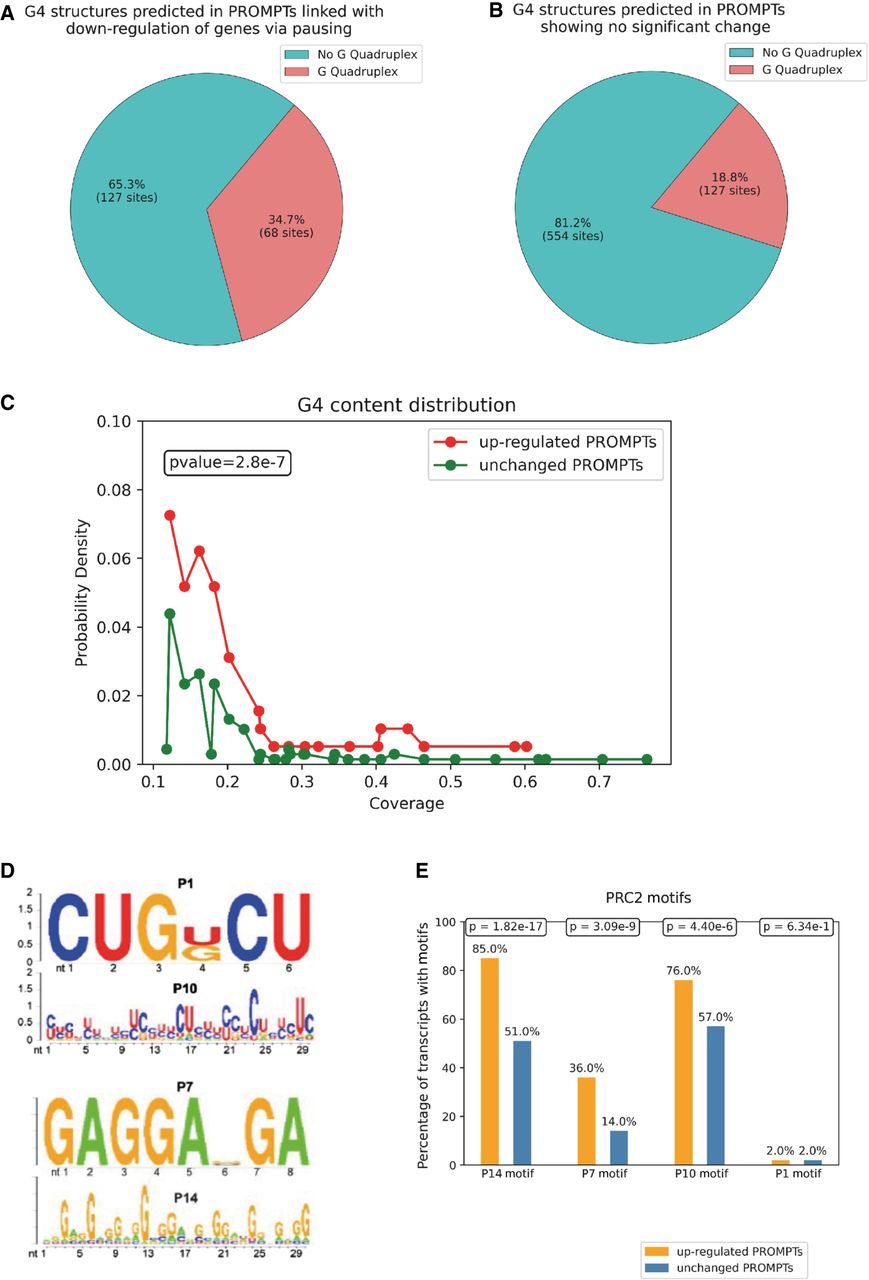

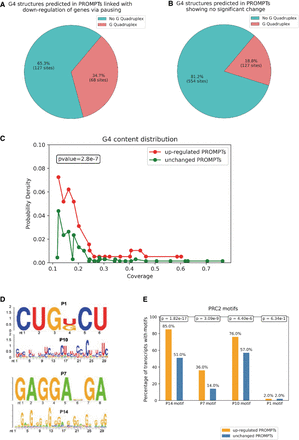

Figure 4.
Figure 4.

IR-induced Y1P-transcribed PROMPTs are enriched in PRC2 binding motifs. (A) Pie chart showing the proportion of sequences predicted to harbor a rG4 structure among the up-regulated (P-value < 0.05, log2FC > 0.1) PROMPTs, which are correlated with down-regulated GB expression and increased PI upon IR from Y1P samples. (B) Pie chart showing the proportion of sequences predicted to harbor a rG4 structure among the unchanged (−0.05 log2FC < 0.05 or P-value > 0.05) PROMPTs upon IR from Y1P. (C) Probability density plots representing rG4 coverage across up-regulated PROMPTs, which are linked with down-regulated GB expression and increased PI versus unchanged PROMPTs upon IR from Y1P samples. A Mann–Whitney U test is used to compare median values of the two probability distributions. (D) RNA-binding motifs of PRC2 identified using dCLIP (Rosenberg et al. 2021). (E) Bar charts showing the percentage of sequences containing a PRC2 motif among the up-regulated (P-value < 0.05, log2FC > 0.1) PROMPTs, which are correlated with down-regulated GB expression and increased PI upon IR from Y1P samples versus unchanged PROMPTs. A Mann–Whitney U test was to compute statistical significance in the difference in enrichment of PRC2 motifs between up-regulated and unchanged PROMPTs.
