Genetic inhibitors of APOBEC3B-induced mutagenesis

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 3.
Figure 3.

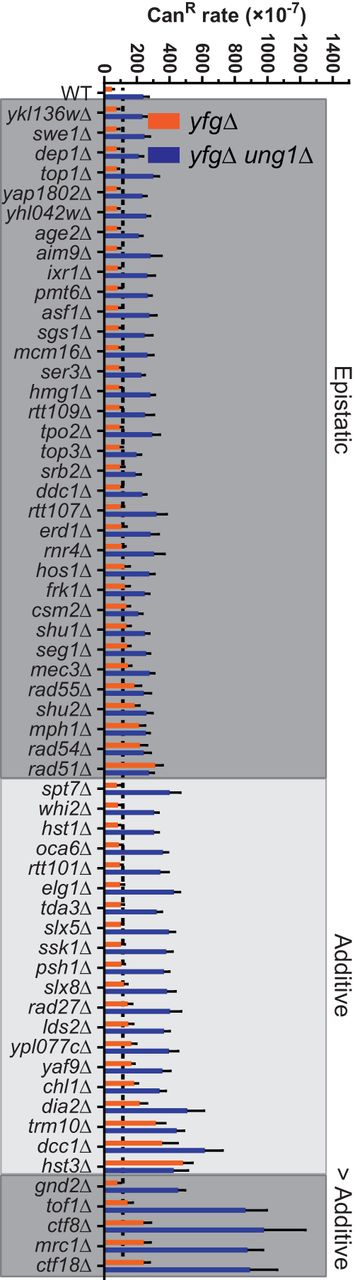

Impact of ung1Δ in mutants showing increased A3B-induced mutation. A3B-induced CanR rates in yeast that contains genes that limit A3B-induced mutation (yfgΔ; orange bars) or in yeast with genes that limit A3B-induced mutation codeleted with UNG1 (yfgΔ ung1Δ; blue bars). Error bars indicated 95% confidence intervals. Double-deletion strains (yfgΔ ung1Δ) that maintain similar A3B-induced CanR rates to the single-deletion strain and ung1Δ strains (black dashed line) are considered epistatic with ung1Δ and likely contribute to the repair or error-free bypass of A3B-induced lesions. yfgΔ ung1Δ strains with A3B-induced CanR rates higher than ung1Δ strains are either additive or greater than additive with UNG1 deletion and likely increase the amount of ssDNA that A3B acts upon.

This Article

  1. Genome Res. 33: 1568-1581

Preprint Server
