Transposable elements drive the evolution of metazoan zinc finger genes

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

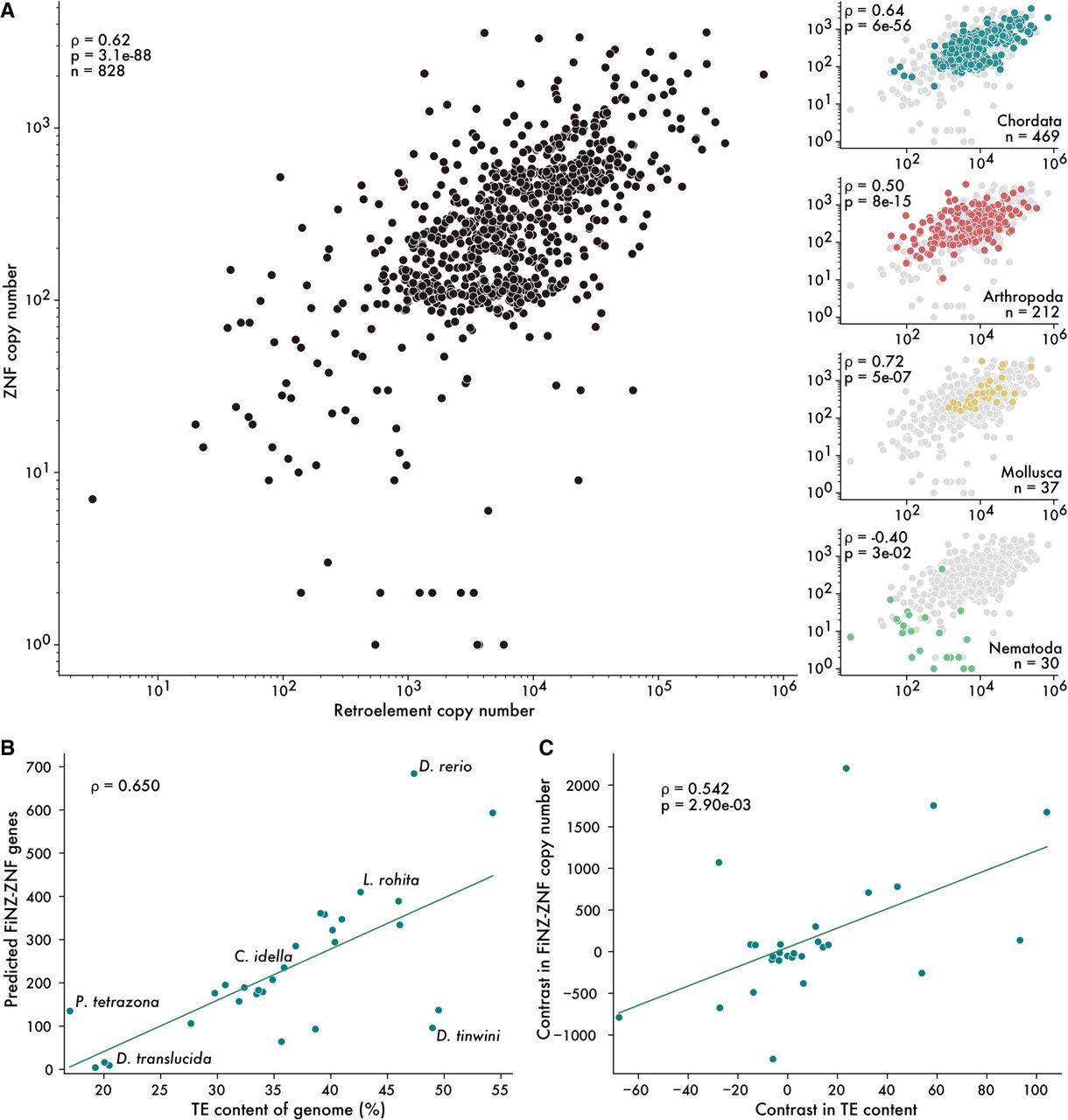

Figure 2.
Figure 2.

ZNF copy number correlates with genomic TE content. (A) Spearman's rank correlations between the estimated number of retroelement insertions and ZNF ORFs. Each point is a representative species from a taxonomic family. Subplots on the right show correlations for individual phyla. (B) Uncorrected Spearman's rank correlation between TE content and FZNF copy number in cyprinid fish. (C) Spearman's rank correlation on phylogenetically independent contrasts.

This Article

  1. Published in Advance September 15, 2023, doi: 10.1101/gr.277966.123 Genome Res. 33: 1325-1339
