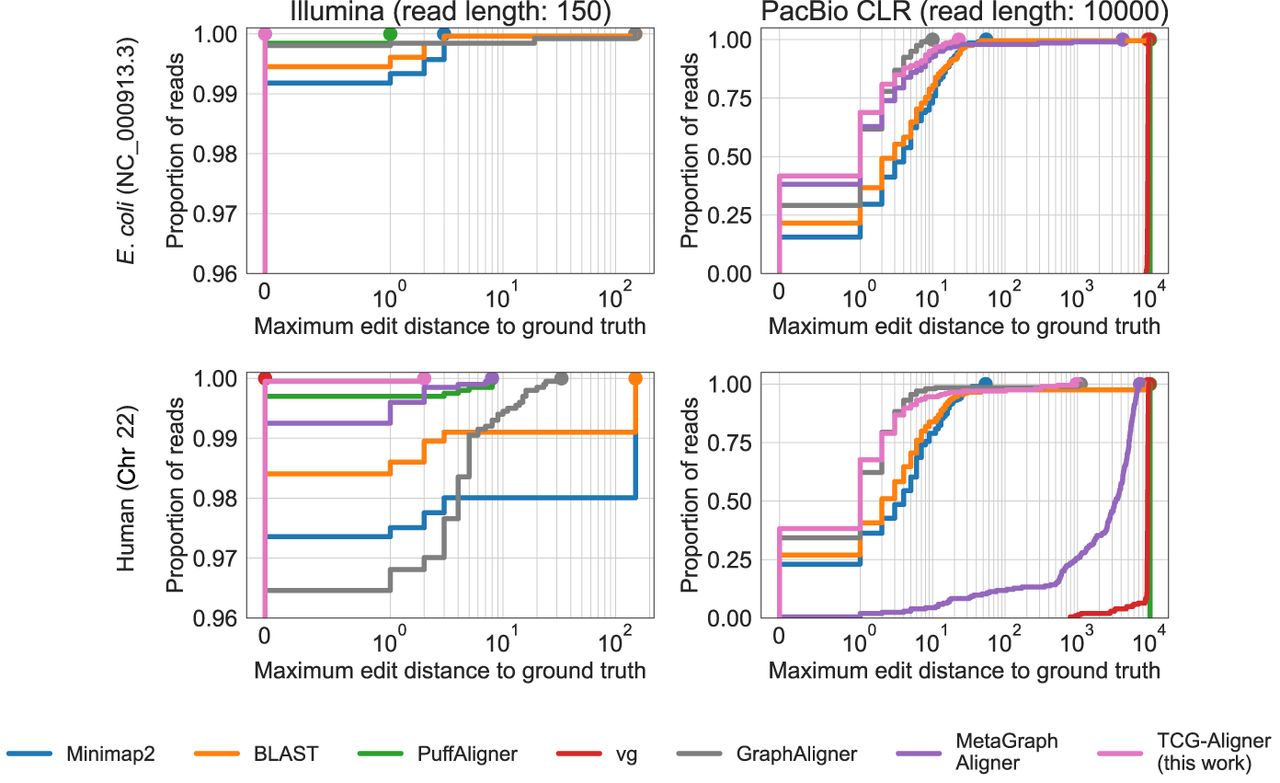

Figure 4.
Alignment accuracy on simulated Illumina- and PacBio-type reads (E. coli NC_000913.3 and human Chr 22). The edit distance is measured between the alignment (the returned path in the graph) and the ground-truth sequence. In the top left subplot, the curves of vg- and TCG-Aligner are superimposed.
