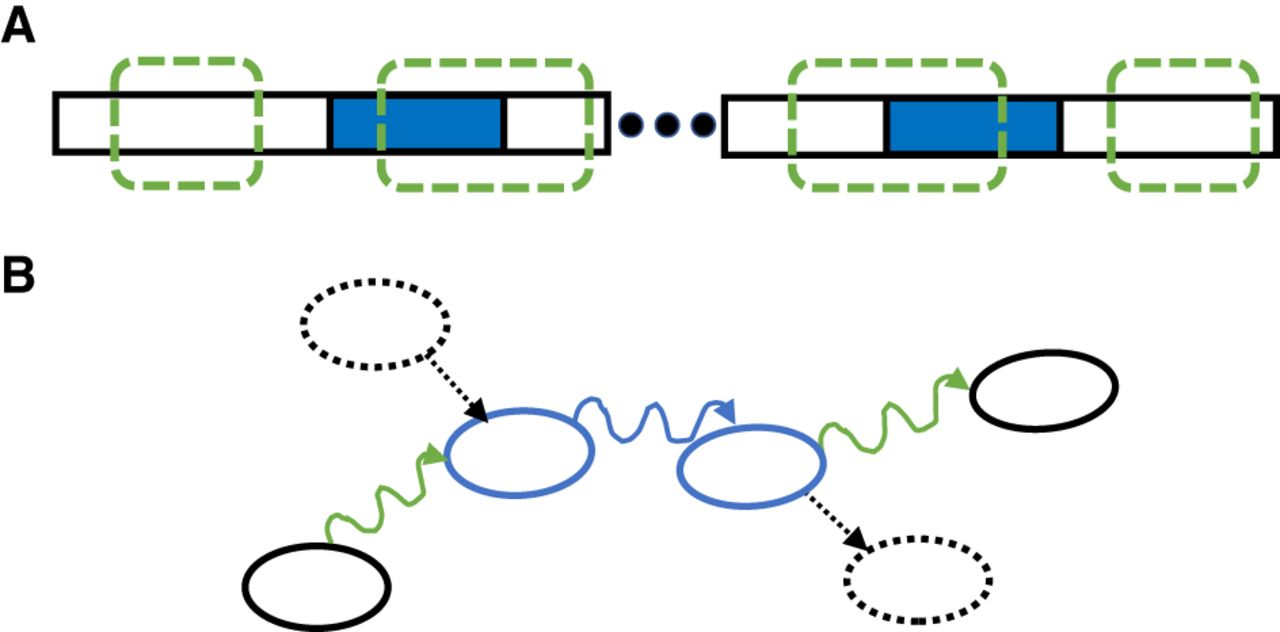

Figure 3.
Illustration of an unsafe unitig. Panel A shows two parts of a sequenced genome X. Regions surrounded by green dashed boxes are the sequenced segments S. The solid blue boxes represent two copies of a repeat.
Panel B shows the resulting
, with dashed vertices and edges representing vertices that are in Gbasic(spk(X)) but not sequenced.
