Snake venom gene expression is coordinated by novel regulatory architecture and the integration of multiple co-opted vertebrate pathways

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

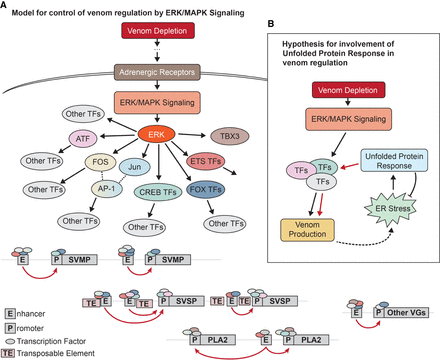

Figure 9.
Figure 9.

Model of venom regulatory network. (A) Hypothesis regulatory network that controls venom regulation through high-level regulatory action of ERK signaling. Red arrows indicate enhancer–promoter interactions. (B) Illustration of hypothesized positive-feedback loop in which venom production activates the UPR, which in turn increases venom production through up-regulation and binding of UPR TFs that target VGs (red arrows).

This Article

  1. Published in Advance June 1, 2022, doi: 10.1101/gr.276251.121 Genome Res. 32: 1058-1073
