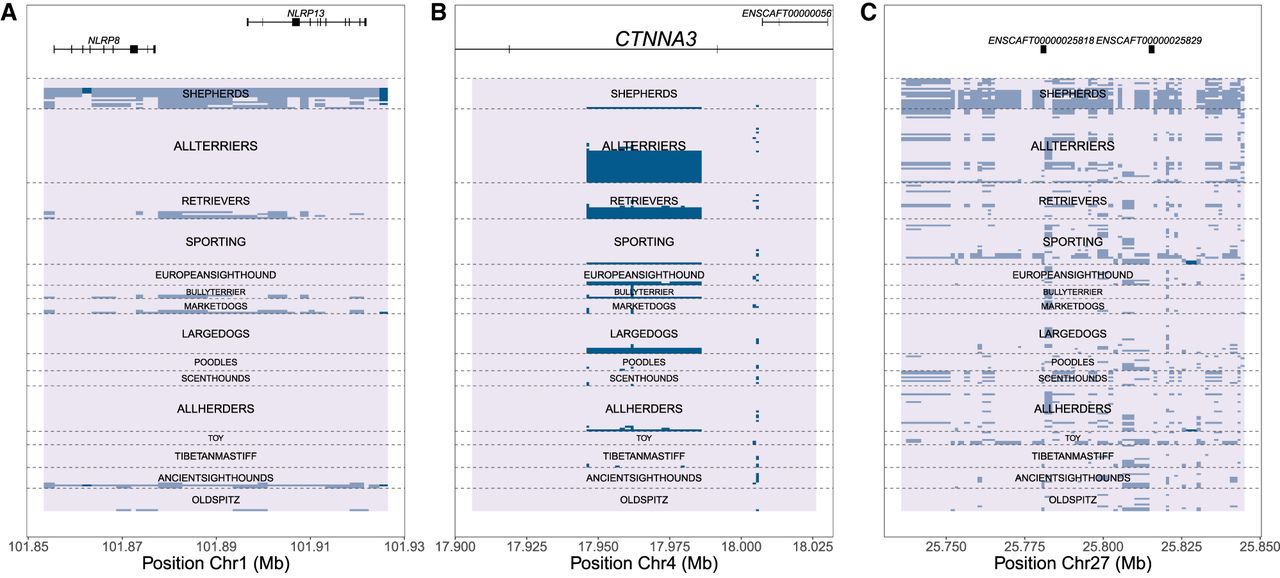

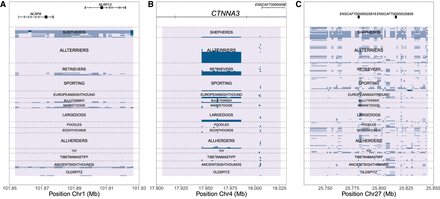

Figure 4.
Instances of loci where specific clades have a different CN. (A–C) Representation of high inter-breed VST regions for the NLRP8 and NLRP13 genes, CTNNA3, and SLC7A (ENSCAFT00000025818 and ENSCAFT00000025829), respectively. Normalized copy number is represented by color, where the modal CN is the lightest color, and deviations from the mode (either deletions or duplications) are colored darker. Each row represents a sample ordered by clade, as described in Parker et al. (2017).
