Genome and time-of-day transcriptome of Wolffia australiana link morphological minimization with gene loss and less growth control

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

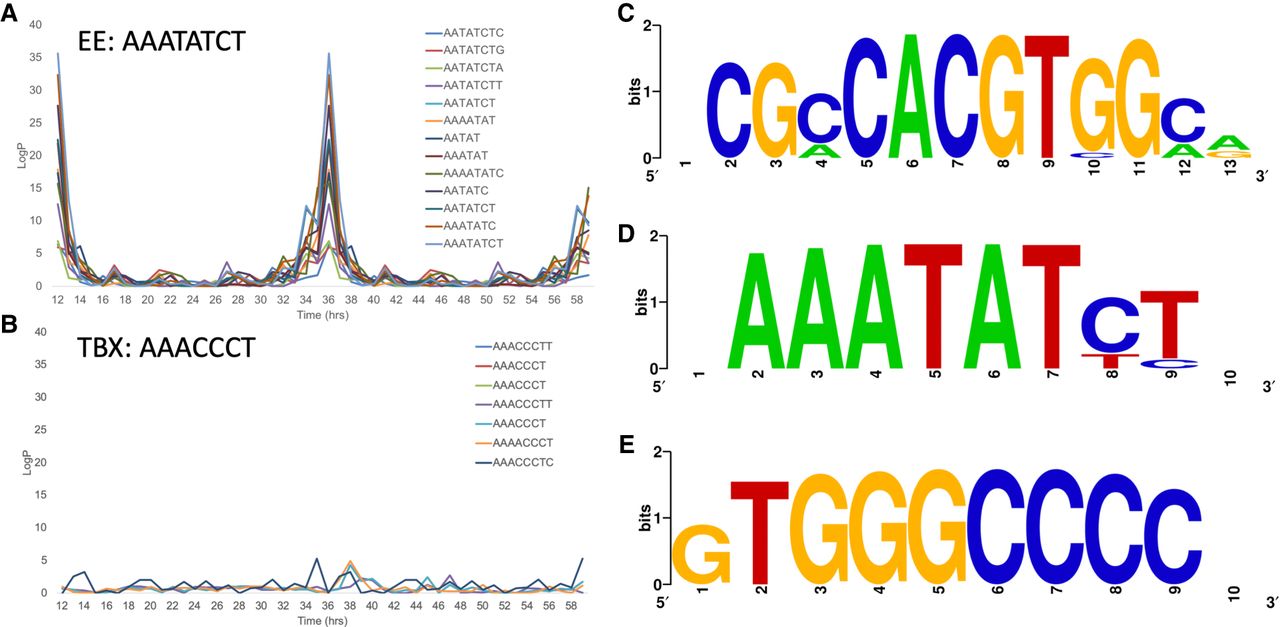

Figure 5.
Figure 5.

Wolffia has conserved TOD cis-elements but lacks others. (A) The Evening Element (EE:AAATATCT) is overrepresented in genes with evening-specific expression. (B) The Telobox (TBX:AAACCCT) is not significantly overrepresented in Wolffia promoters of cycling genes. (C) Sequence logo of the significantly overrepresented Gbox (CACGTG) in Wolffia. (D) Sequence logo of the EE overrepresented cis-elements. (E) Sequence logo of the Protein box (PBX: TGGGCCC) overrepresented cis-elements.

This Article

  1. Published in Advance December 23, 2020, doi: 10.1101/gr.266429.120 Genome Res. 31: 225-238
