A multi-enhancer RET regulatory code is disrupted in Hirschsprung disease

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

Figure 2.
Figure 2.

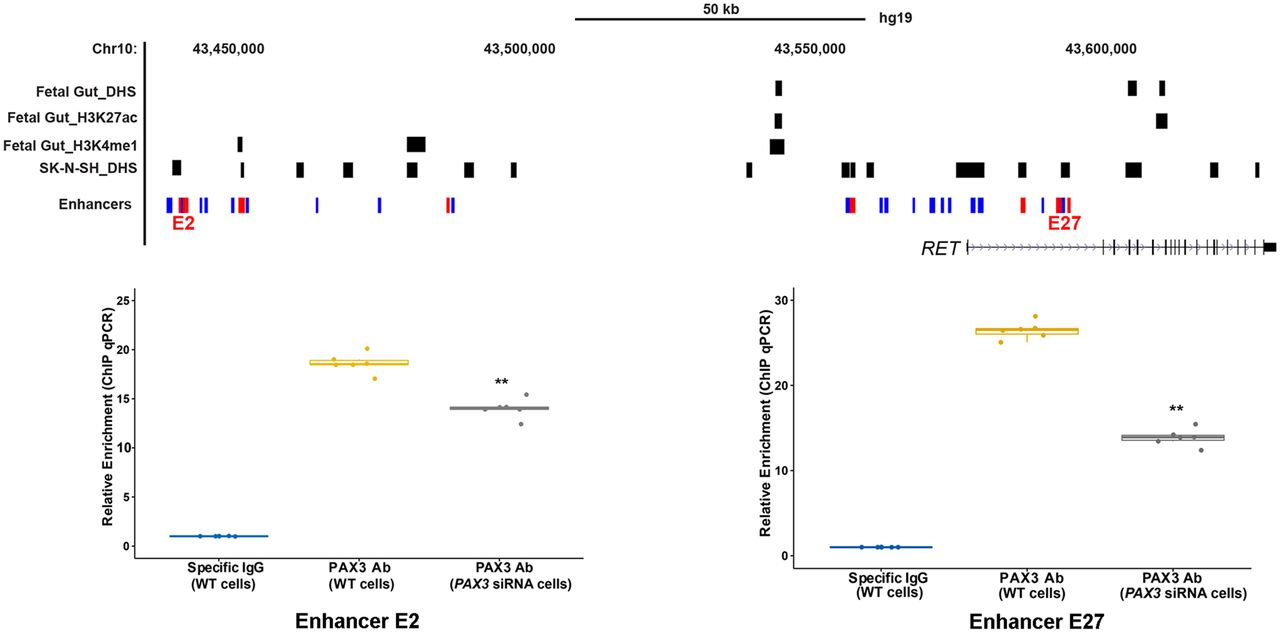

Identification of cognate TFs bound to RET enhancers. Genome map of the RET locus with locations of the E2 and E27 CREs together with ChIP-qPCR results using a PAX3 antibody in SK-N-SH cells shows enrichment of binding compared with the background. The specificity of binding is shown by siRNA knockdown of PAX3 with concomitant reduction in ChIP-qPCR signals at both CREs. (**) P < 0.001 for two technical replicates for three independent biological replicates (n = 6).
