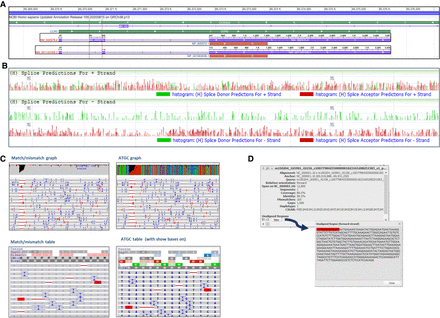

Figure 5.
Track data displays for different track types. (A) Gene annotation track showing two transcript variants in a gene selected using mouse clicks. Green indicates gene; purple, transcript; red, coding sequence (CDS). Red hairlines denote positions where the transcript variants show differences in splicing. (B) MultiWig files displayed as overlay (top) or stacked (bottom set) graphs. (C) Pile-up graphs and tables for alignment data, for example, BAM files. (D) Example of data available in the tooltip of an alignment, along with a pop-up view showing sequence of unaligned nucleotides.
