The evolution of sex-biased gene expression in the Drosophila brain

(Downloading may take up to 30 seconds. If the slide opens in your browser, select File -> Save As to save it.)

Click on image to view larger version.

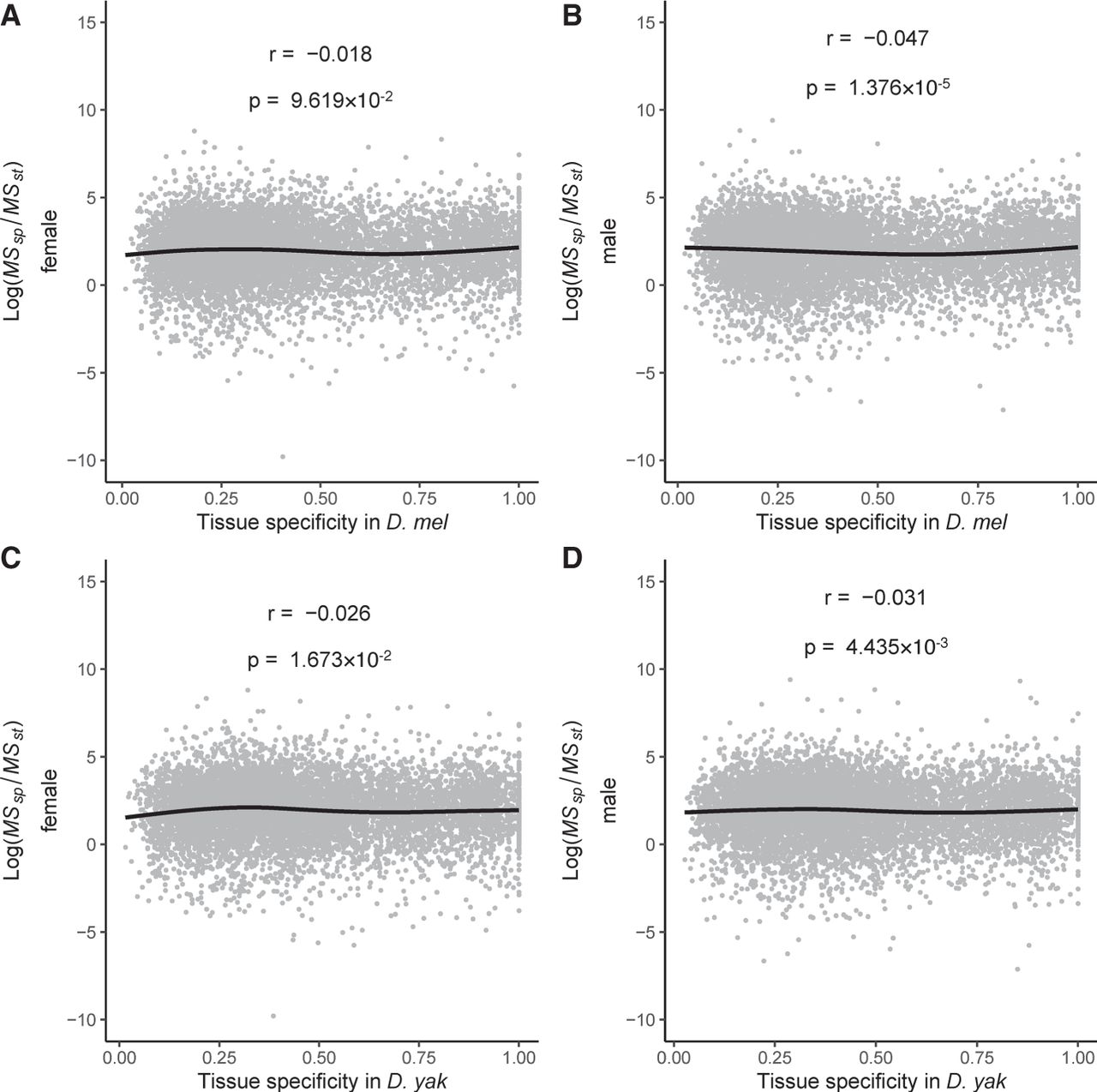

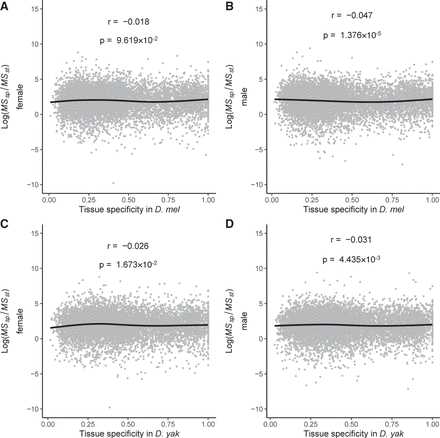

Figure 6.
Figure 6.

Expression breadth across tissues does not constrain gene expression evolution in the brain. There is a very weak but significant negative relationship between tissue specificity and MSspecies/MSstrain in the brain. The plots show the distribution of MSspecies/MSstrain for a range of tissue specificity in (A) D. melanogaster females, (B) D. melanogaster males, (C) D. yakuba females, and (D) D. yakuba males. A tissue specificity of one indicates expression in only one tissue, and a low tissue specificity indicates broad expression. Correlations shown are Spearman's correlations. Lines are generalized additive model smoothing curves. Sex-biased genes are defined in the same way as in Figure 4.
